Repair Procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

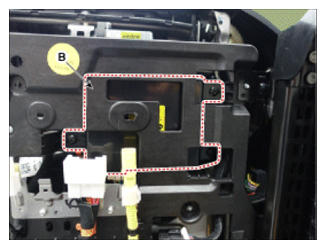

  3. Remove the IMS module (B) after disconnecting the connector and loosening the screws (3EA).
    G14427305Courtesy of HYUNDAI MOTOR AMERICA
