Integrated Body Control Unit (IBU)
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing.
(Refer to Body - "GLOVE BOX ")

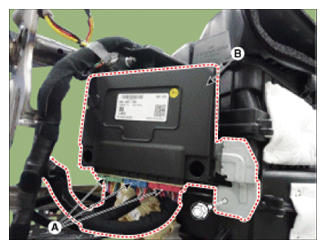

- Disconnect the IBU connector (A).
- Remove the IBU (B) after loosening mounting bolt and nuts.
(Refer to Body - "GLOVE BOX ")
