Repair Procedures: Installation

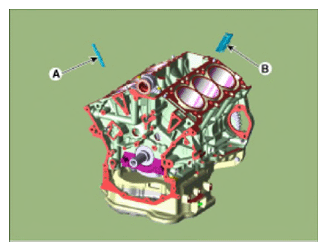

Install the water jacket separator #1 (A), #2 (B).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

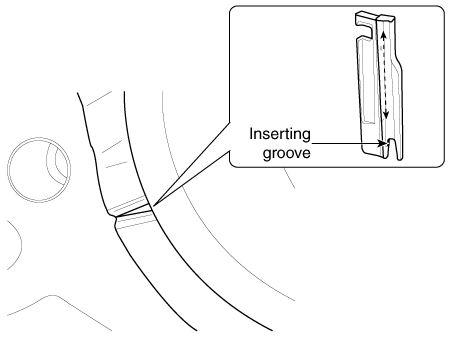

Insert the separator by aligning it with the block inner side protrusion. It must be below the cylinder head installing surface.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Install the LH/RH cylinder head assembly and gasket.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD ")
