Components & Components Location: Components

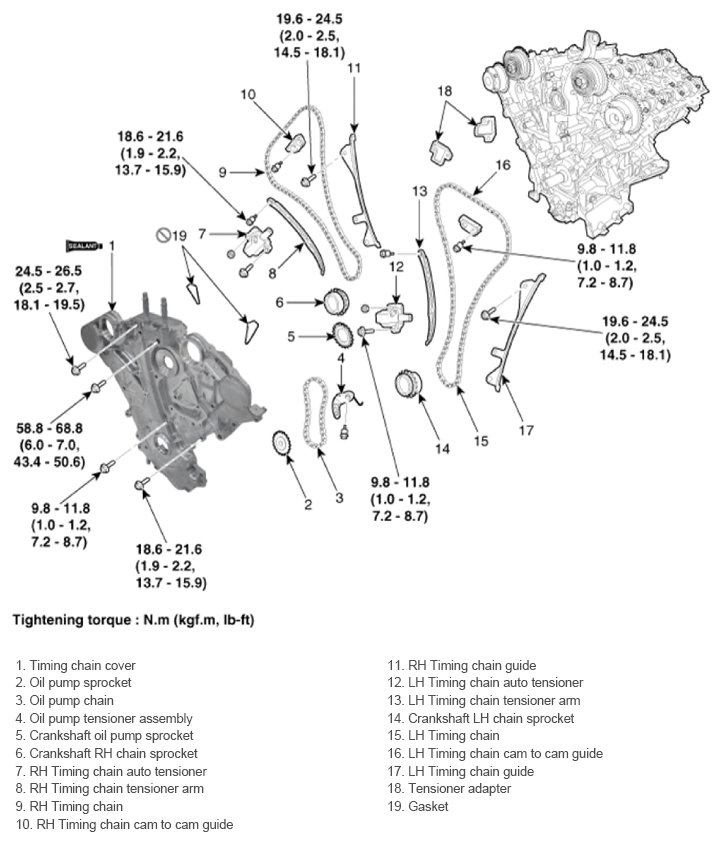

Fig 1: Timing System Components Location With Torque Specifications

G14423139

Courtesy of HYUNDAI MOTOR AMERICA
