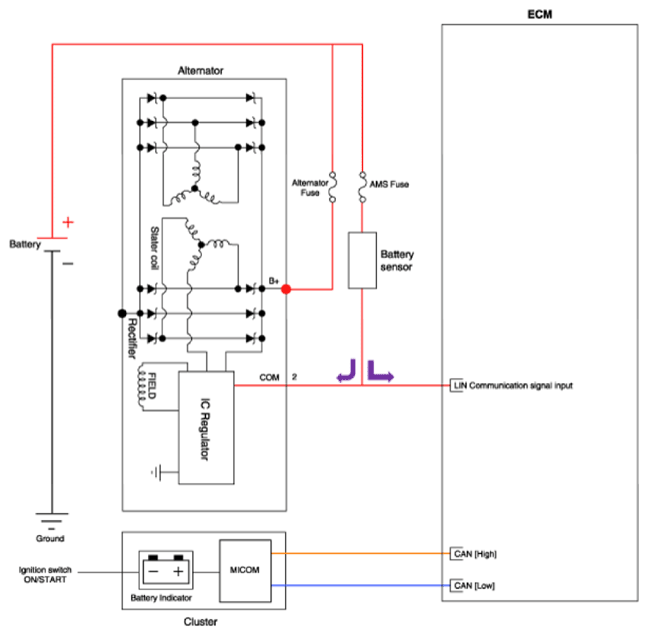

Circuit Diagram

G14423968

Courtesy of HYUNDAI MOTOR AMERICA

Information

COM signal - LIN communication control
B+ Terminal - The output voltage from the generator travels to the battery via the B+ terminal.
