Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tires.
(Refer to Suspension System - "WHEEL ")

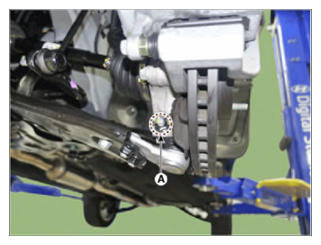

Remove the split pin and nut (A).
Tightening torque:

98.0-117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

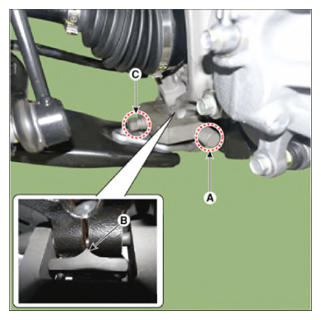

Remove the lower arm from the knuckle by using the SST (09568-4R100).

Install the support bolt (A) from lower arm bolt hole.
Install the support body (B) from front axle.

Tighten the bolt (C).

Courtesy of HYUNDAI MOTOR AMERICA

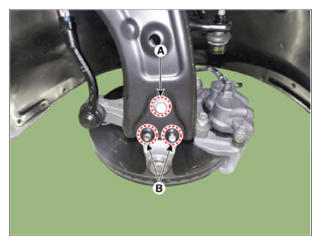

Remove the ball joint assembly after losening the bolt (A) and nut (B).
Tightening torque:

107.9 - 127.5N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0lb-ft)
