Information

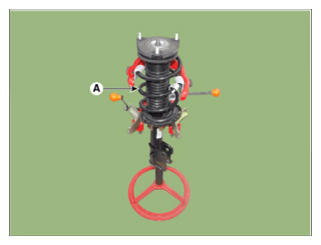

When compressing the coil spring, be cautious as there may be corrosion due to damage to the coil spring painting. In order to avoid such painting damage, compress by putting over the waste hose, etc.
(Refer to the picture below.)
Courtesy of HYUNDAI MOTOR AMERICA

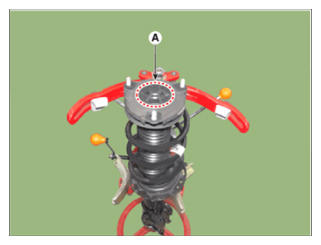

Remove the insulator cap (A).
Courtesy of HYUNDAI MOTOR AMERICA
Using the spring compressor, compress the coil spring (A).
Courtesy of HYUNDAI MOTOR AMERICA

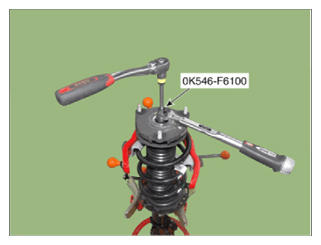

Using SST (0K546-F6100), loosen the self locking nut.
Courtesy of HYUNDAI MOTOR AMERICA
Remove the insulator, spring pad, coil spring and dust cover from the strut assembly.
