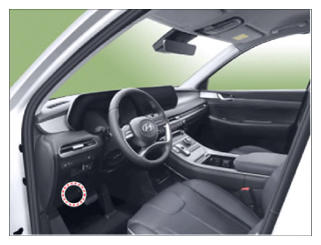

Connect the DLC cable of Diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on Diagnostic tool.
Courtesy of HYUNDAI MOTOR AMERICA

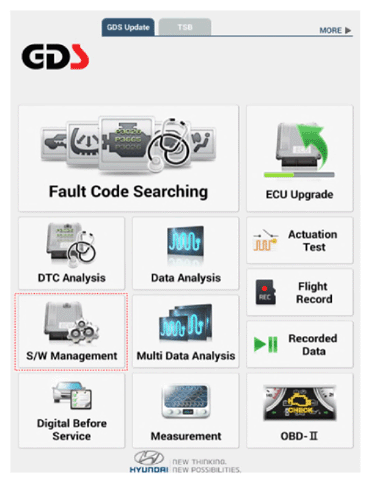

Select the 'S/W Management' and 'Car model'.
Courtesy of HYUNDAI MOTOR AMERICA

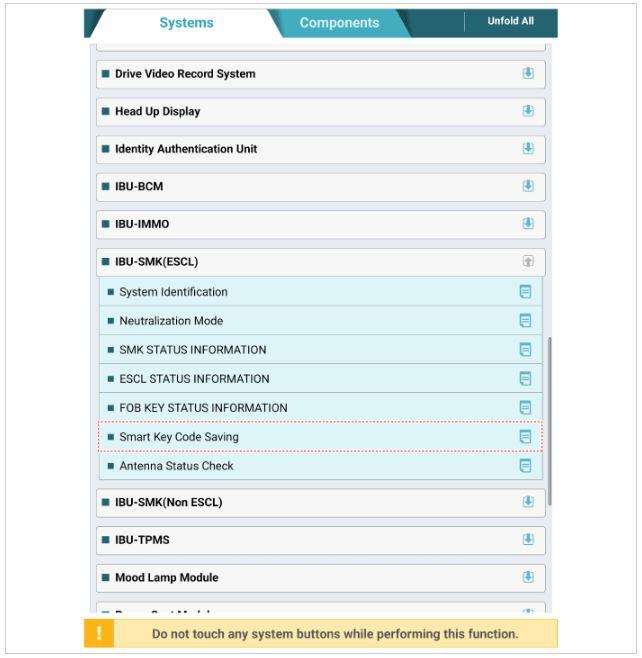

Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
