Dynamic Damper: Installation
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.

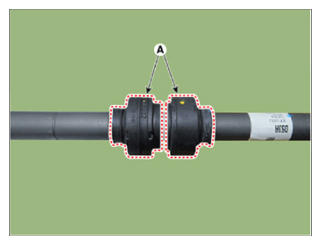

- Install the dynamic damper (A).NOTE:
- When installing the dynamic damper, install it in set with the mounting part (A) of the shaft.

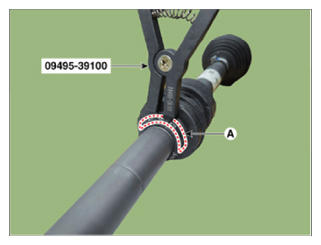

- Install the dynamic damper band (A) using SST (09495-39100).
- Install the transaxle side joint.
(Refer to Driveshaft Assembly - "Joint Assembly (Transaxle side) ")
- Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
