Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Remove the coupling assembly.
(Refer to 4 Wheel Drive (AWD) System - "Repair Procedures ")

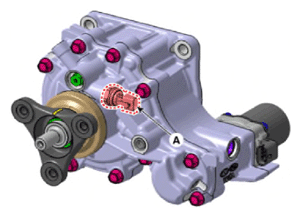

- Remove the pressure sensor (A).NOTE:
- Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque:
10.8-14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb-ft)
