Components & Components Location: Components
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HYUNDAI MOTOR AMERICA
|

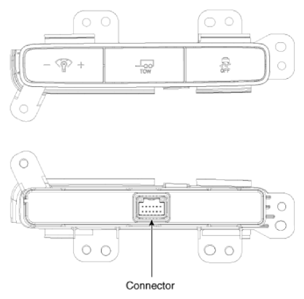

| Connector |
Pin NO |
Function |
 Courtesy of HYUNDAI MOTOR AMERICA
|
1 |
IGN |
| 2 |
ILL (+) |
| 3 |
Rheostat (Up) |
| 4 |
Rheostat (Down) |
| 5 |
- |
| 6 |
ILL (-) |
| 7 |
Signal |
| 8 |
- |
| 9 |
- |
| 10 |
- |
| 11 |
ESC OFF Signal |
| 12 |
Ground |
