Section 53 (Audio/Video/Navigation (AVN) System)
›
AVN Keyboard Assembly
›

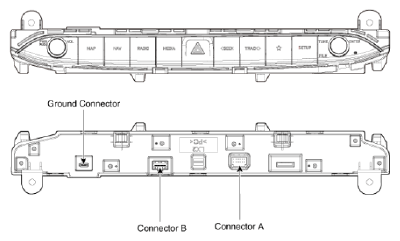

Components & Components Location
›
Components
Components & Components Location: Components
WARNING:
This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of HYUNDAI MOTOR AMERICA
Connector A
Pin
Description
Courtesy of HYUNDAI MOTOR AMERICA
1
-
2
Battery (+)
3
ACC
4
-
5
Illumination (-)
6
Illumination (+)
7
MM_CAN (LOW)
8
MM_CAN (HIGH)
9
-
10
GND
11
-
12
Basel
Connector B
Pin
Description
Courtesy of HYUNDAI MOTOR AMERICA
1
Battery (+)
2
Hazard indicator
3
Ground
4
Hazard Switch
5
-
6
-
