Components And Components Locations
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HYUNDAI MOTOR AMERICA
|

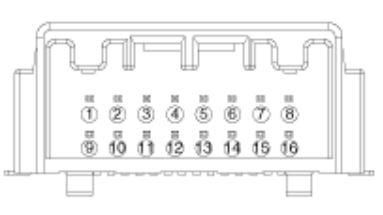

| Connector A |
Pin |
Description |
 Courtesy of HYUNDAI MOTOR AMERICA
|
1 |
Ground |
| 2 |
B-CAN |
| 3 |
IAU_LOCAL CAN (High) |
| 4 |
- |
| 5 |
- |
| 6 |
- |
| 7 |
IGN 1 |
| 8 |
Battery |
| 9 |
Ground |
| 10 |
Battery (+) |
| 11 |
IAU_LOCAL CAN (Low) |
| 12 |
- |
| 13 |
- |
| 14 |
- |
| 15 |
ACC |
| 16 |
IGN 2 |
