Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".

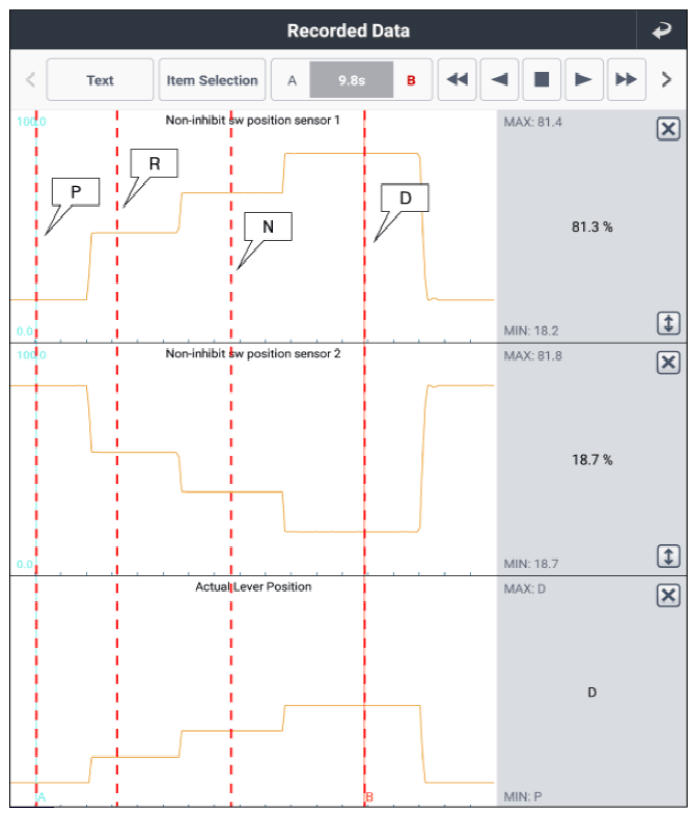

  3. Select "Current Data" mode and monitor "Non-inhibit SW position sensor 1", "Non-inhibit SW position sensor 2", "Actual Lever Position" parameter.
  4. Change a shift lever from P-range to D-range.
G14461276Courtesy of HYUNDAI MOTOR AMERICA
