Engine Control System Diagnosis (7 Of 9)
›
DTC P064A-00: Fuel Pump Control Module
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

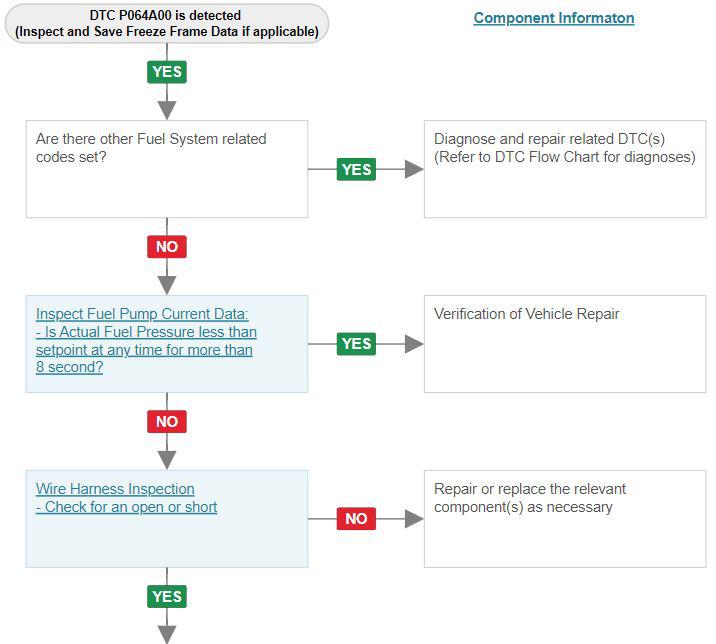

Fig 1: 1 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

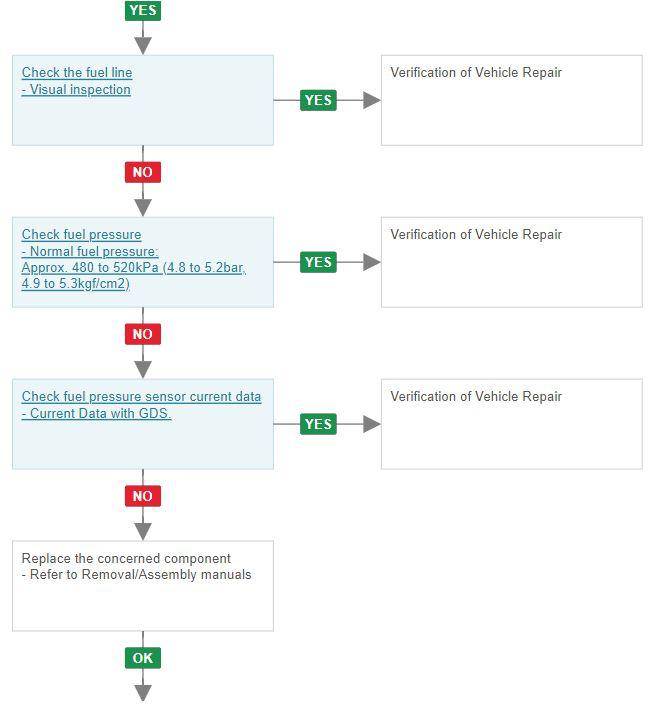

Fig 2: 2 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

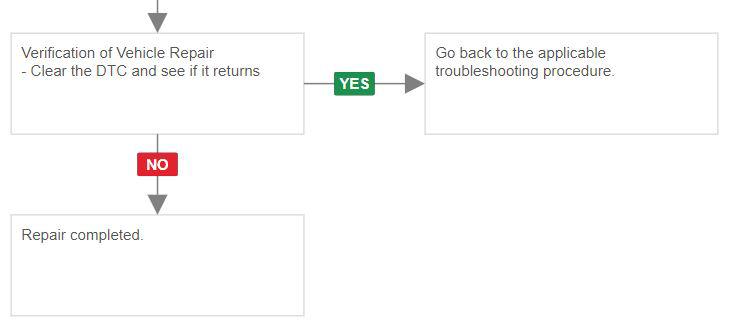

Fig 3: 3 Of 3
Courtesy of HYUNDAI MOTOR AMERICA
