Engine Control System Diagnosis (7 Of 9)
›
DTC P0A1A-00: Generator Control Module
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

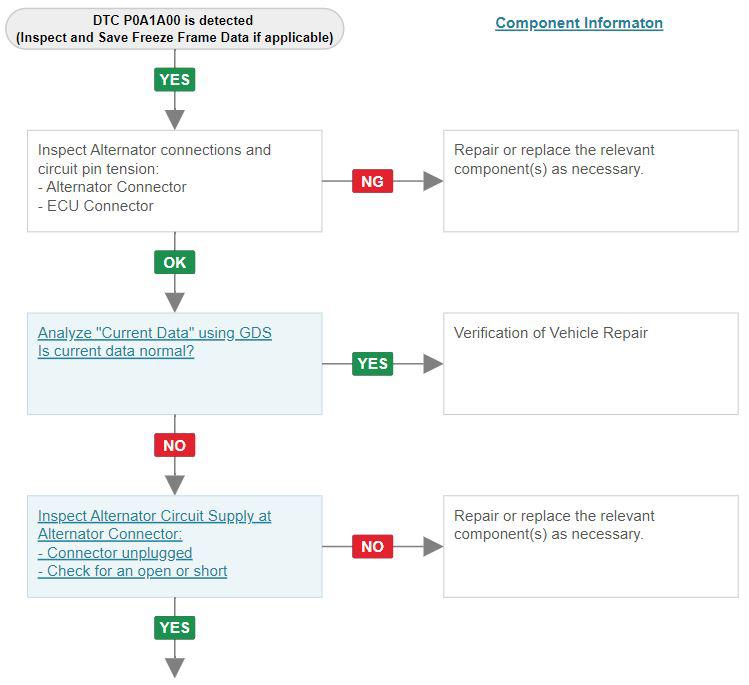

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

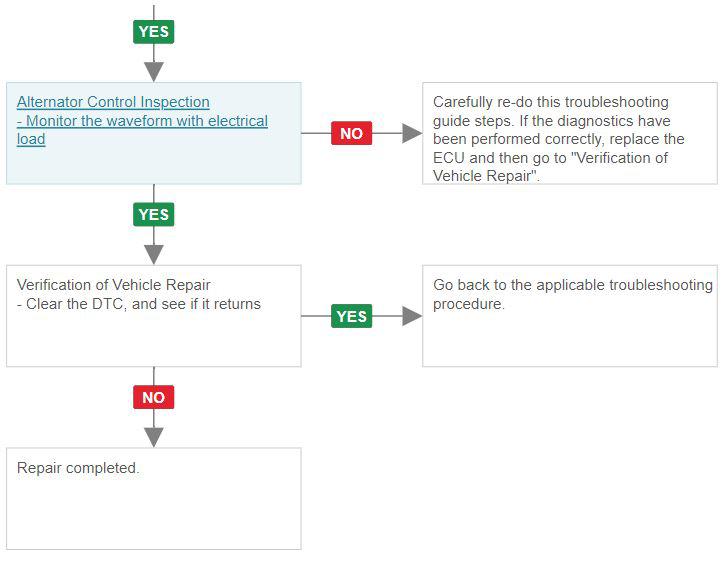

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
