Repair Procedures: Replacement: Removal

CAUTION:

NOTE:

Remove the roof side molding.
(Refer to Interior Trim - "ROOF SIDE MOLDING ")
Remove the inside rear view mirror assembly.
(Refer to Mirror - "INSIDE REAR VIEW MIRROR ")
Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")

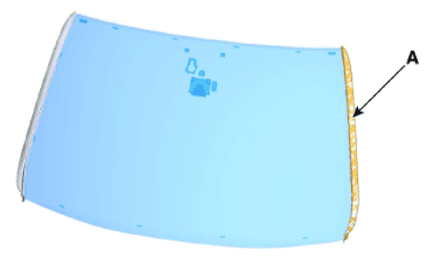

Remove the windshield glass side molding (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

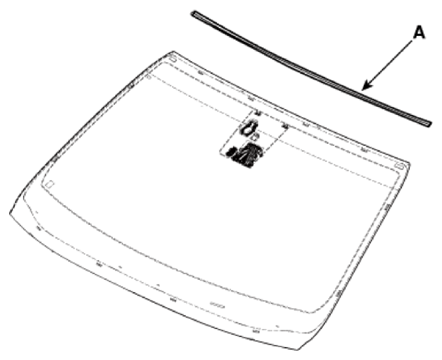

Remove the windshield glass upper molding (A).

Courtesy of HYUNDAI MOTOR AMERICA

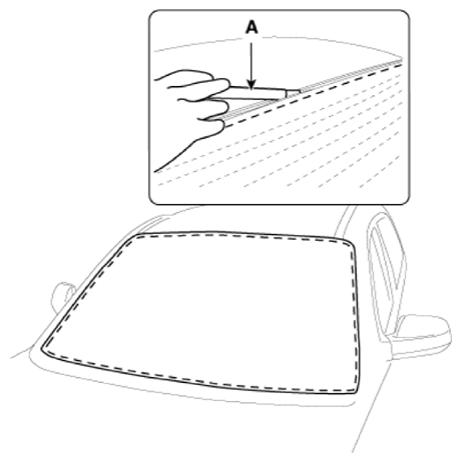

Using a cutter (A) knife, carefully remove the windshield glass molding.
Information
- Use the cutter with a 20 to 30 cm-long blade.
Courtesy of HYUNDAI MOTOR AMERICA

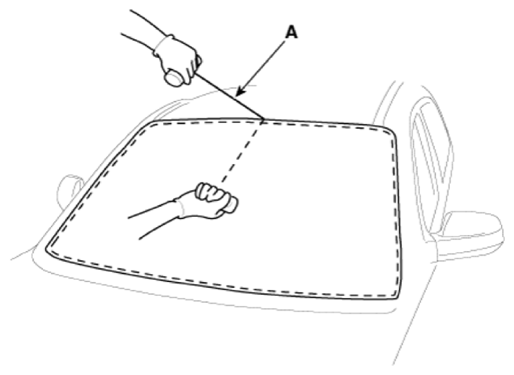

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires.
- Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of HYUNDAI MOTOR AMERICA

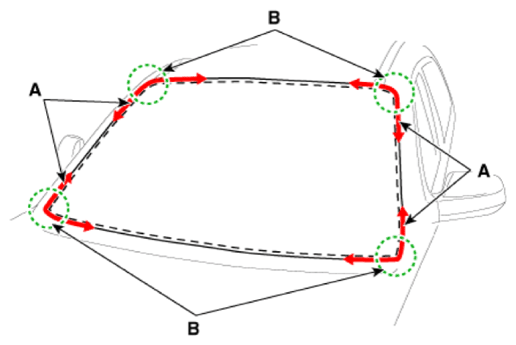

Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

Courtesy of HYUNDAI MOTOR AMERICA

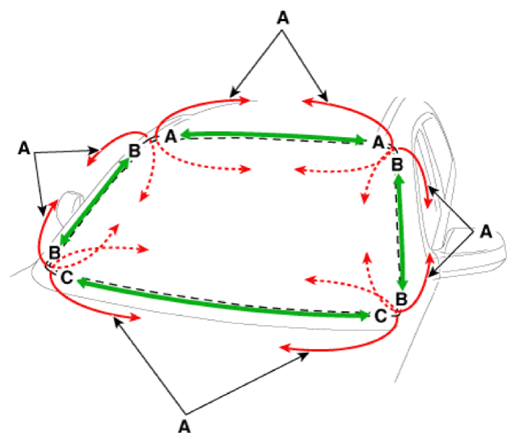

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Courtesy of HYUNDAI MOTOR AMERICA

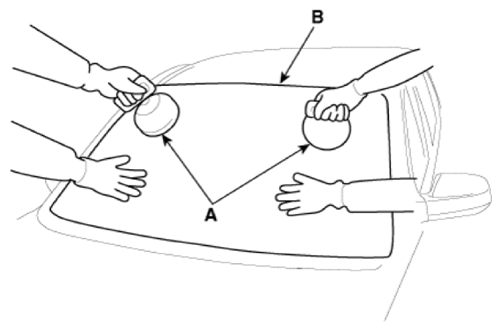

Remove the windshield glass (B) carefully using the glass holder (A).
