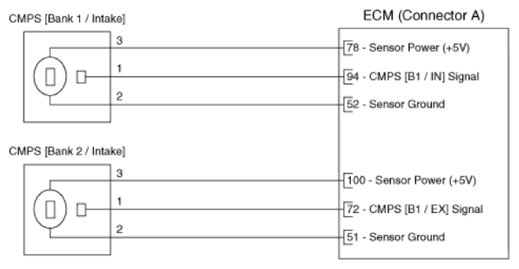

Home › Hyundai › 2021 › Santa Fe Calligraphy, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5T (Except HEV) › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
