Home › Hyundai › 2021 › Santa Fe Calligraphy, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5T (Except HEV) › E-CVVT Motor › Description & Operation › Operation

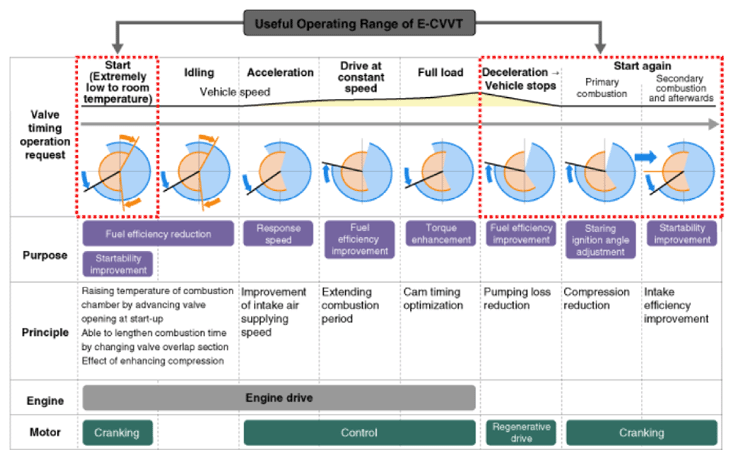

Description & Operation: Operation

G14537912Courtesy of HYUNDAI MOTOR AMERICA
