Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat (LH).

    (Refer to Body - "REAR SEAT ASSEMBLY ")

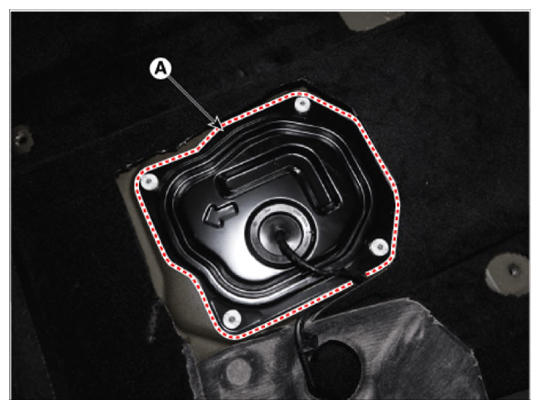

  3. Remove the fuel pump service cover (A).
    G14537859Courtesy of HYUNDAI MOTOR AMERICA

    Information

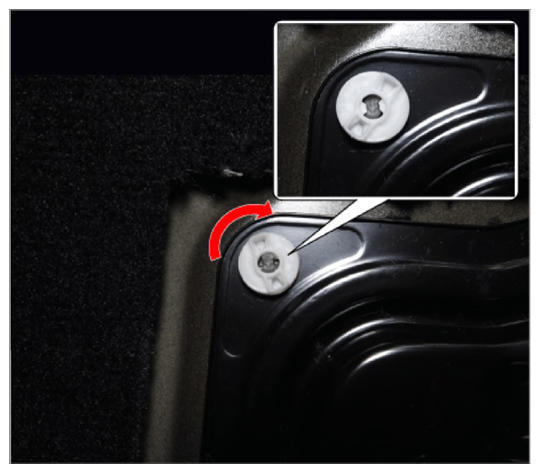

    • When removing the fuel pump service cover, remove the 4 clips by rotating them clockwise as shown in the below illustration.
      G14537860Courtesy of HYUNDAI MOTOR AMERICA

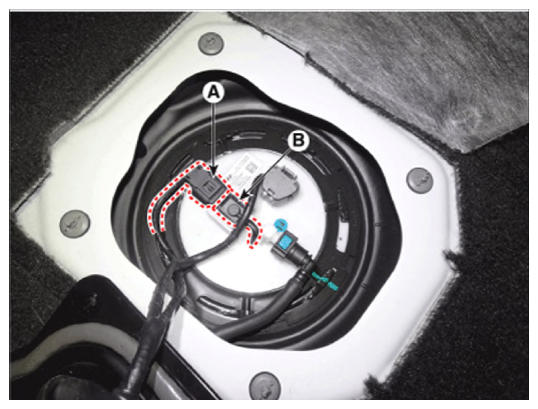

  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G14537861Courtesy of HYUNDAI MOTOR AMERICA
