[Bank 1/Sensor 2]
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.

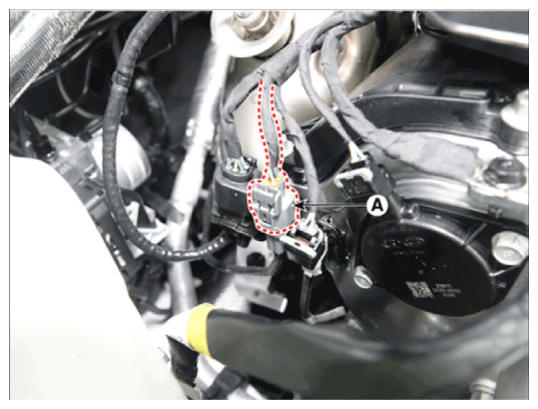

- Disconnector the heated oxygen sensor connector (A).
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

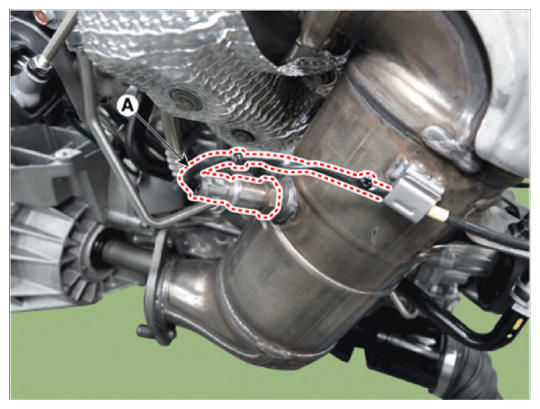

- Remove the heated oxygen sensor (A).
Tightening torque: 39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)
