Repair Procedures: Installation

To install, reverse the removal procedures.

NOTE:

Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.

Smear and cover splines (B) with molybdenum type high pressure grease.

GREASE SPL-1 equivalent (MS511-07)

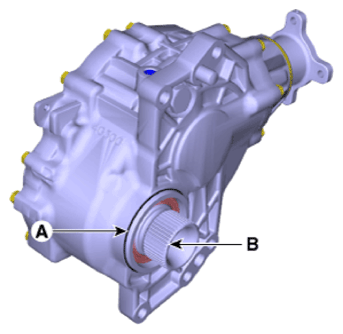

[Gasoline 2.5 T-GDI]

Courtesy of HYUNDAI MOTOR AMERICA

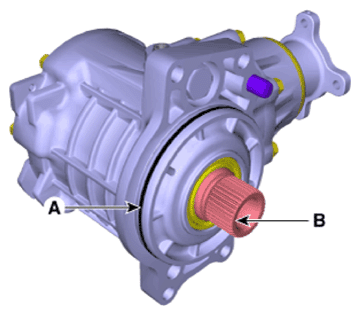

[Gasoline 2.5 MPI]

Courtesy of HYUNDAI MOTOR AMERICA

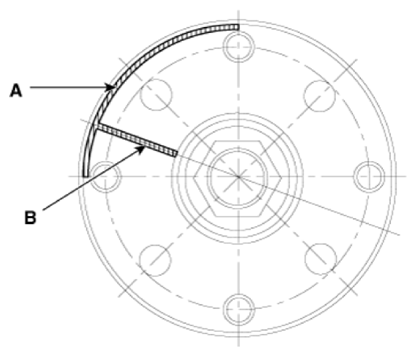

Install the propeller shaft to be near runout marking (Transfer assembly 1 ea (A), propeller shaft 1 ea (B) each other.

Courtesy of HYUNDAI MOTOR AMERICA
