Repair Procedures: Inspection

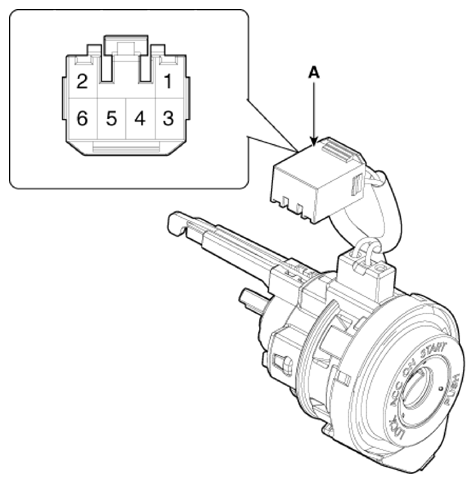

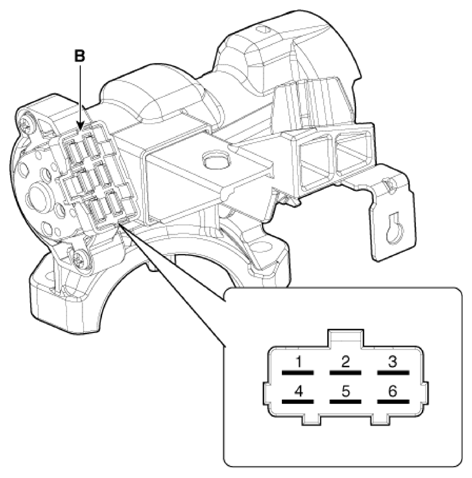

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G14536691Courtesy of HYUNDAI MOTOR AMERICA
    G14536692Courtesy of HYUNDAI MOTOR AMERICA

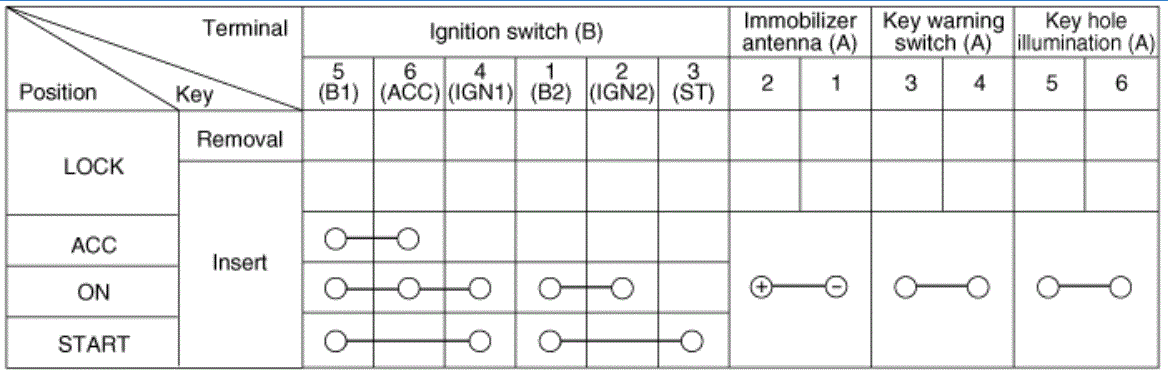

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G14536693Courtesy of HYUNDAI MOTOR AMERICA
