Home › Hyundai › 2021 › Santa Fe Hybrid Limited › Repair and Diagnosis › Engine Performance › Ignition System › Ignition System (HEV) › Ignition Coil › Schematic Diagrams › Notes

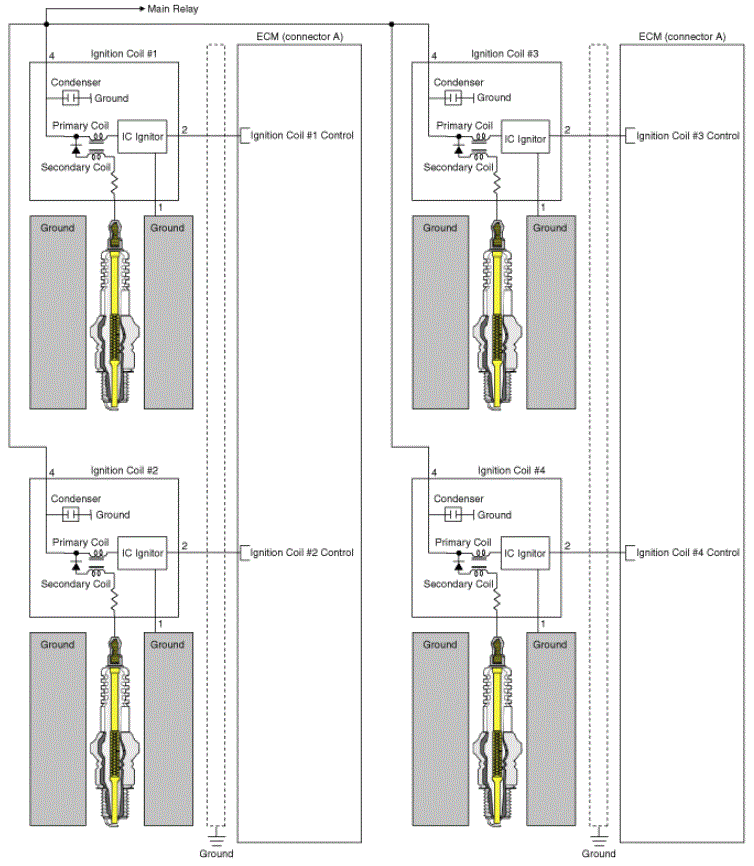

Schematic Diagrams: Notes

G16111895Courtesy of HYUNDAI MOTOR AMERICA
