Compensation Requirement and Procedure

  1. Simultaneous replacement of 4WD ECU (Controller) and coupling
    • Does not require compensation.
  2. Replacement of coupling only

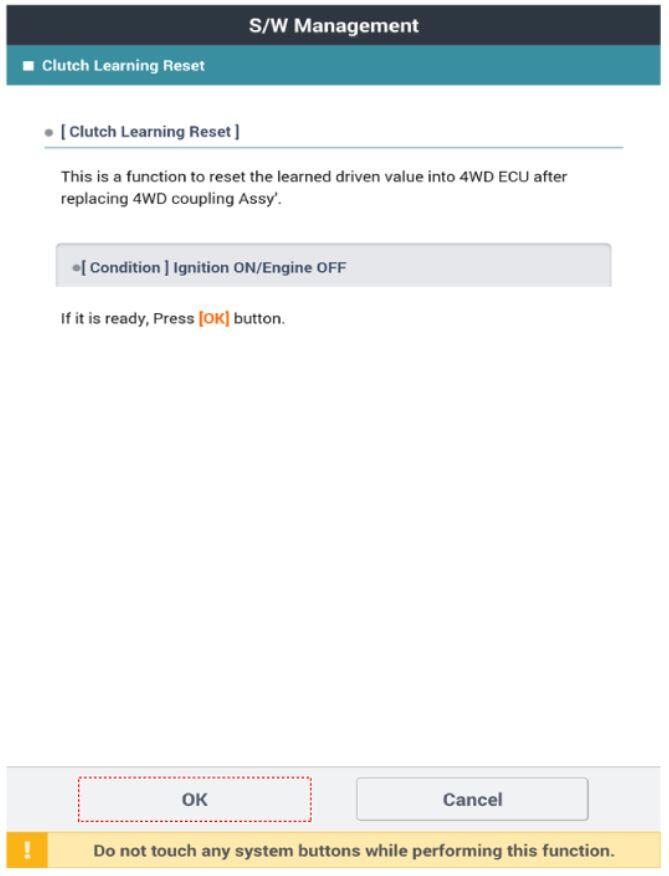

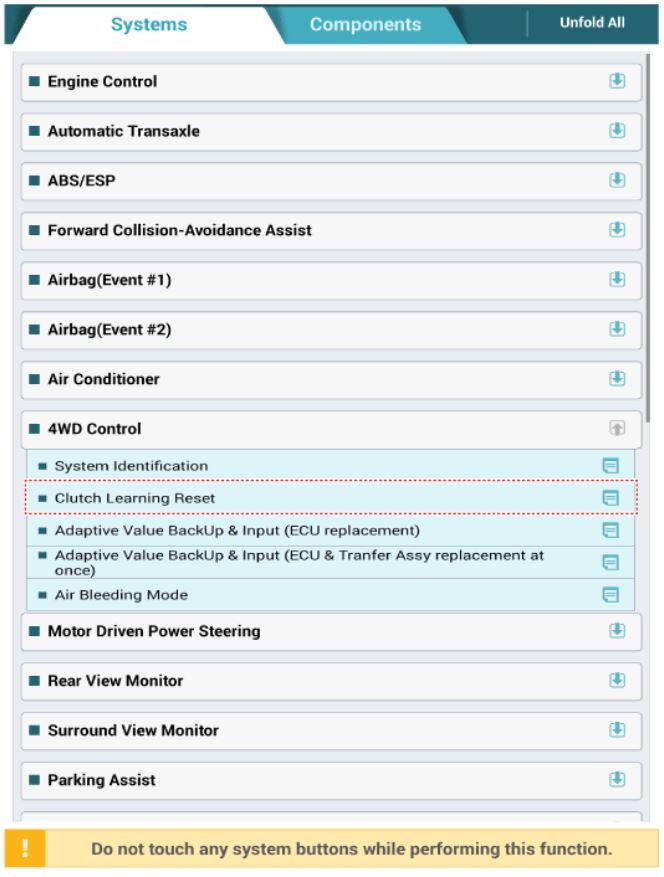

    • Reset the 4WD ECU's (Controller) clutch learning.

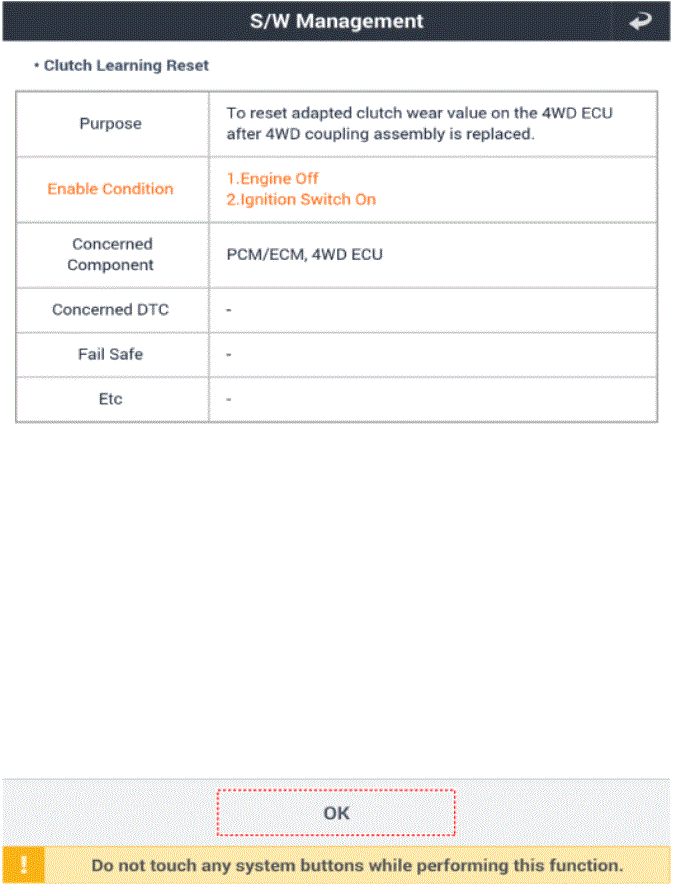

    G16112819Courtesy of HYUNDAI MOTOR AMERICA
    G16112820Courtesy of HYUNDAI MOTOR AMERICA
    G16112821Courtesy of HYUNDAI MOTOR AMERICA

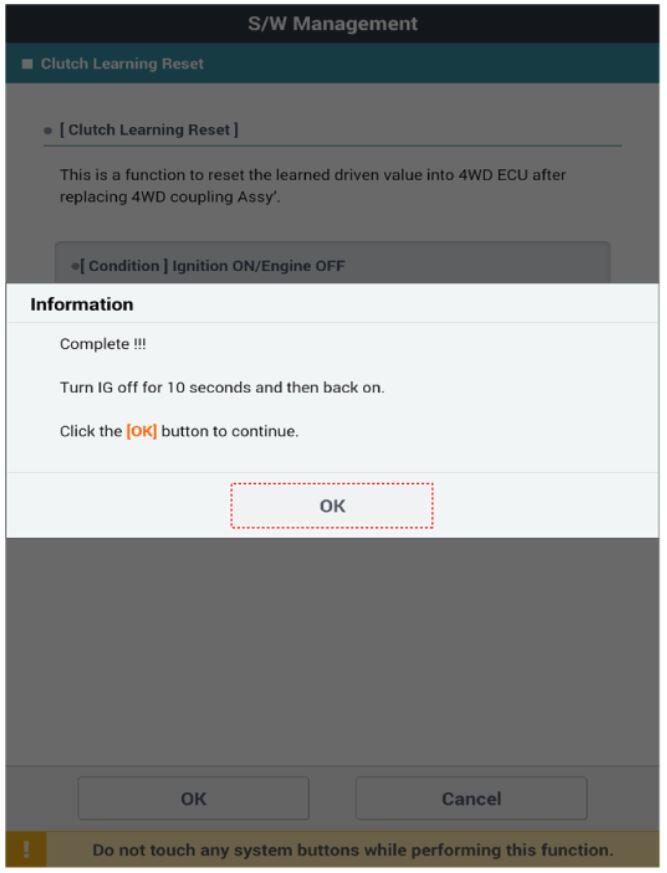

    G16112822Courtesy of HYUNDAI MOTOR AMERICA
  3. Replacement of 4WD ECU (Controller) only

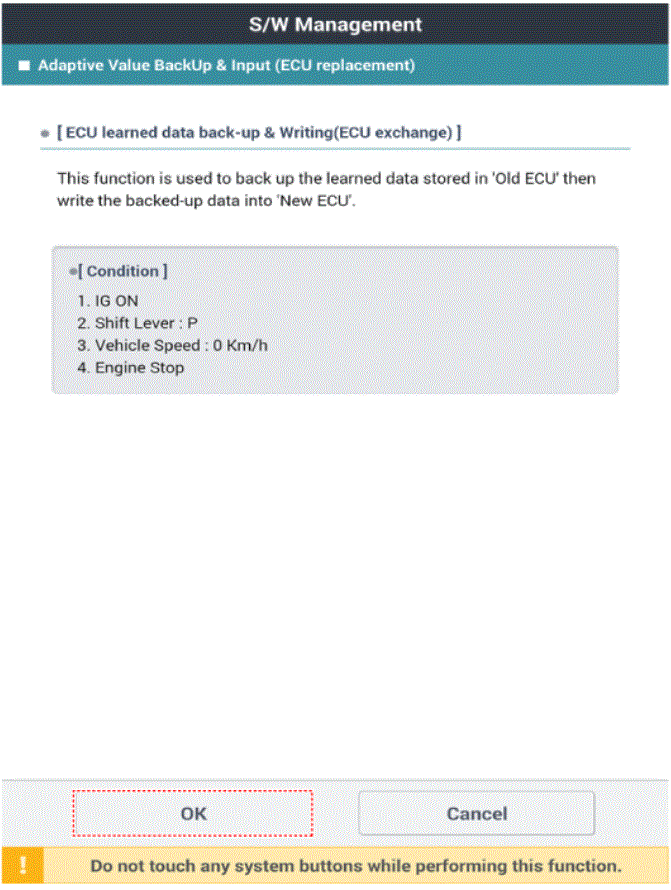

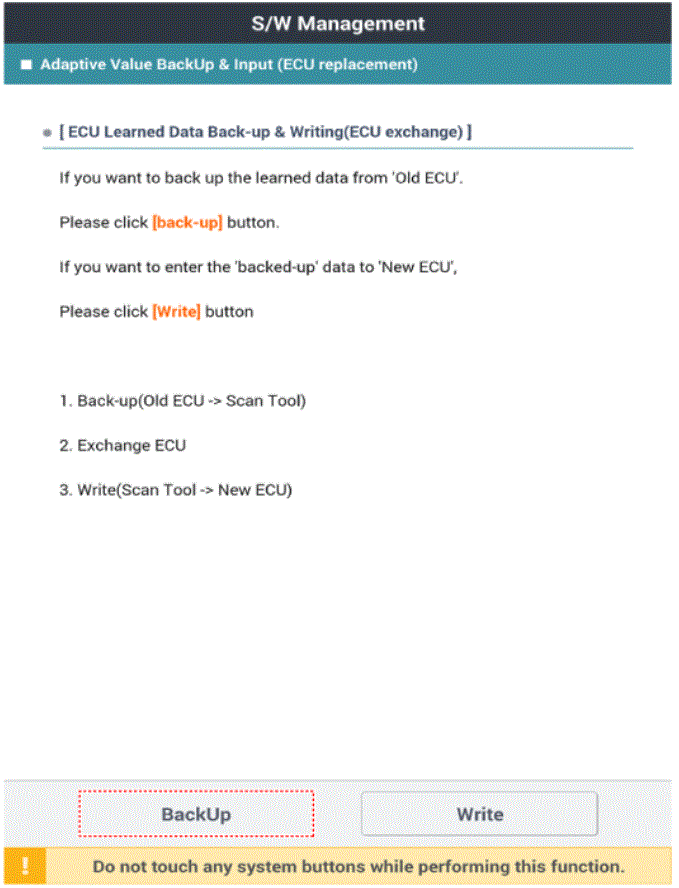

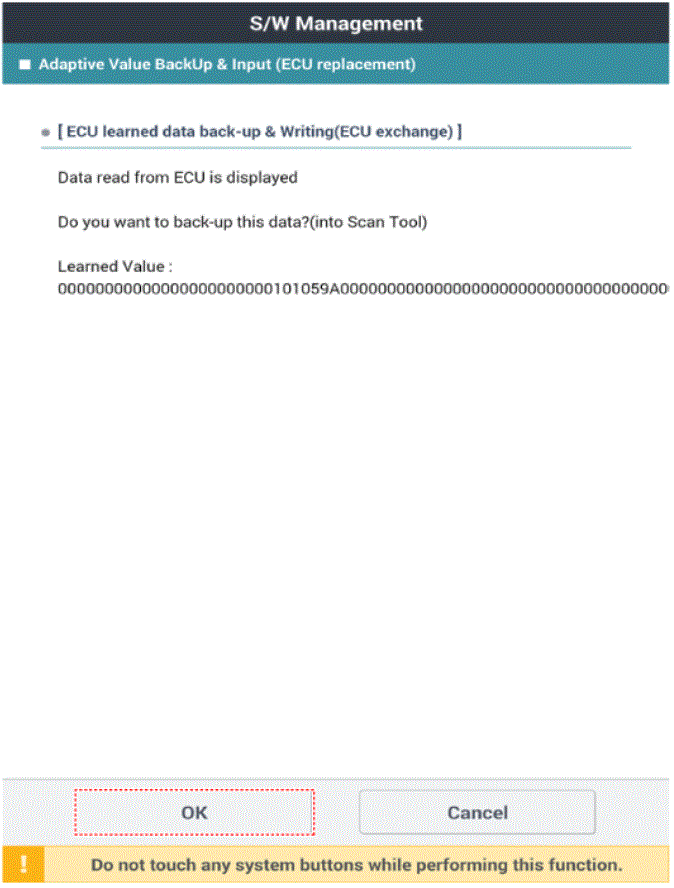

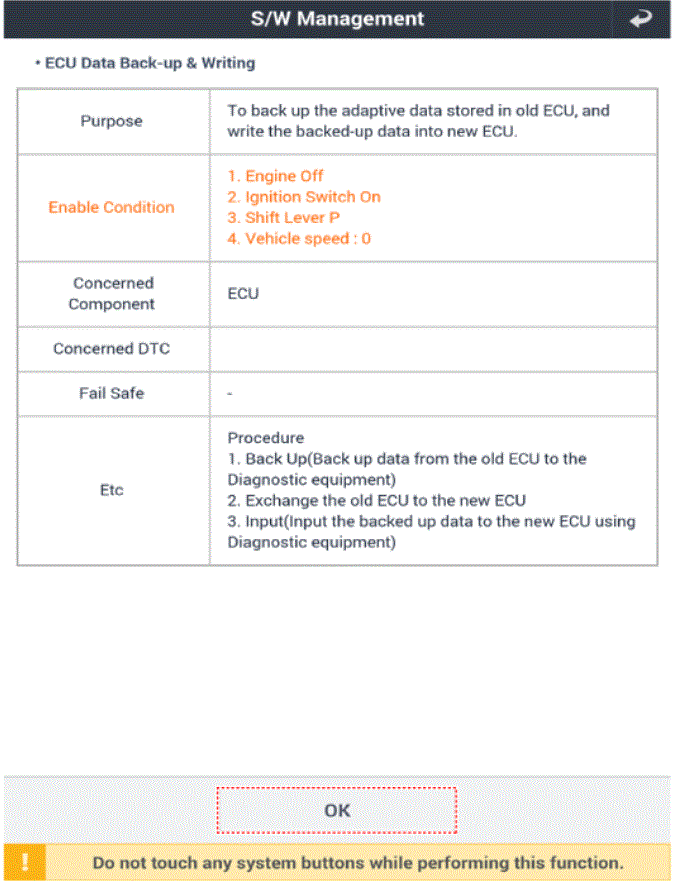

    • Before replacement: Check the ECU's clutch learning.

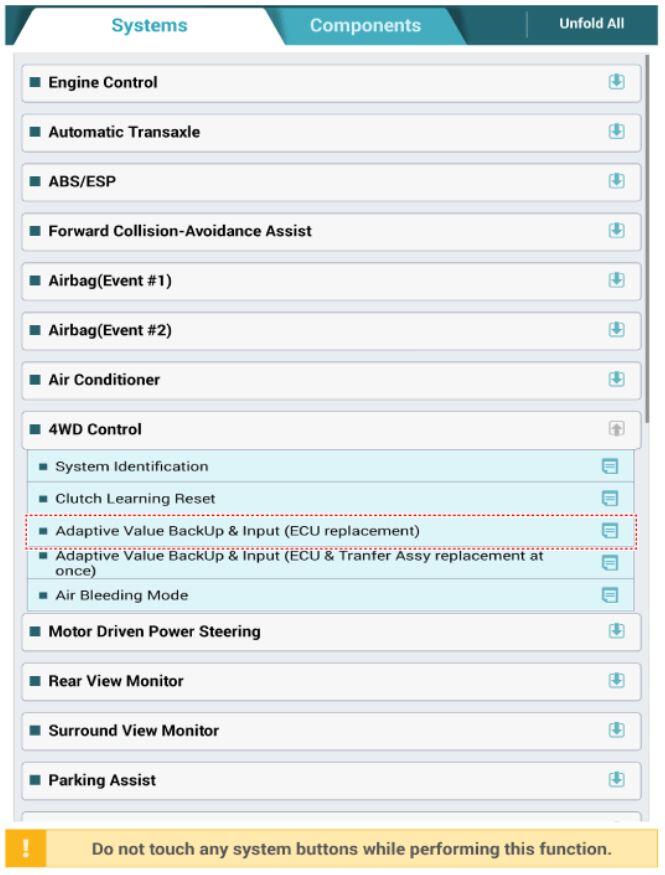

      G16112823Courtesy of HYUNDAI MOTOR AMERICA
      G16112824Courtesy of HYUNDAI MOTOR AMERICA

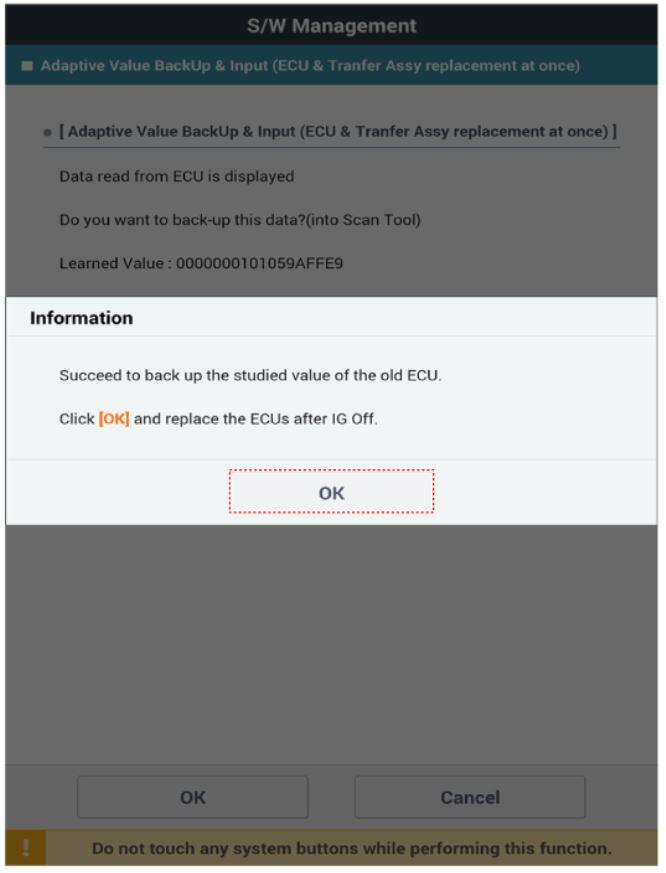

      G16112825Courtesy of HYUNDAI MOTOR AMERICA
      G16112826Courtesy of HYUNDAI MOTOR AMERICA
      G16112827Courtesy of HYUNDAI MOTOR AMERICA

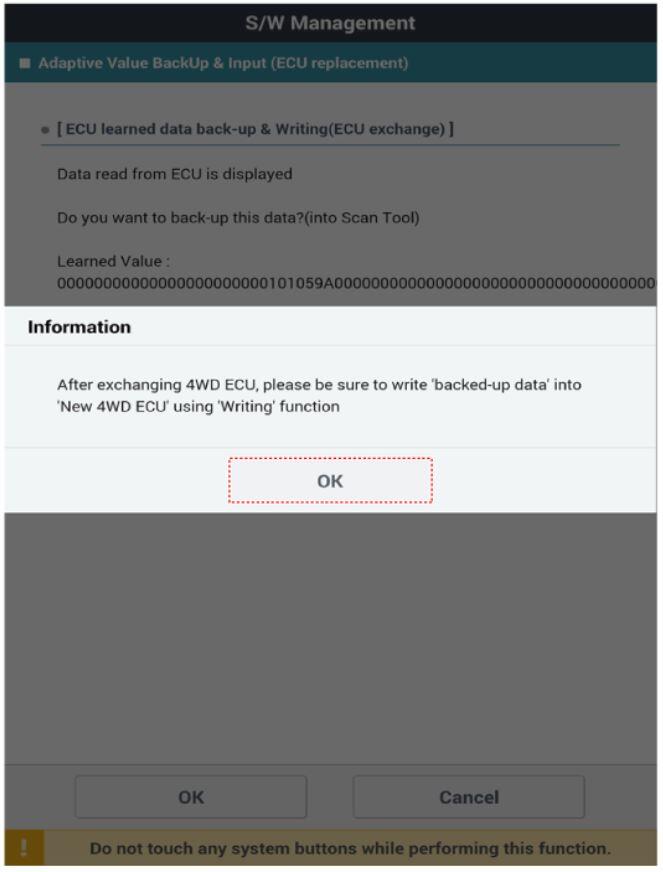

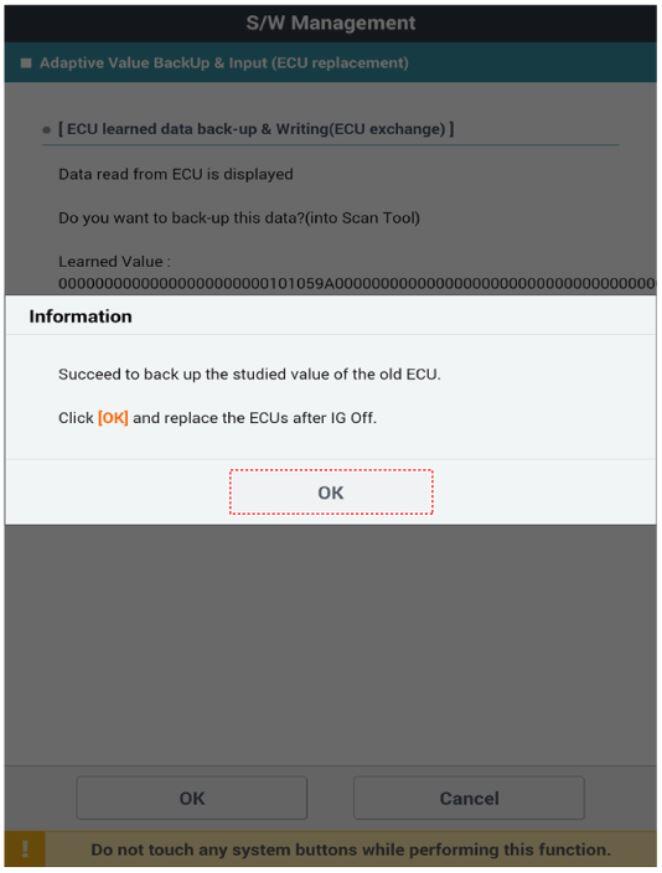

      G16112828Courtesy of HYUNDAI MOTOR AMERICA
      G16112829Courtesy of HYUNDAI MOTOR AMERICA

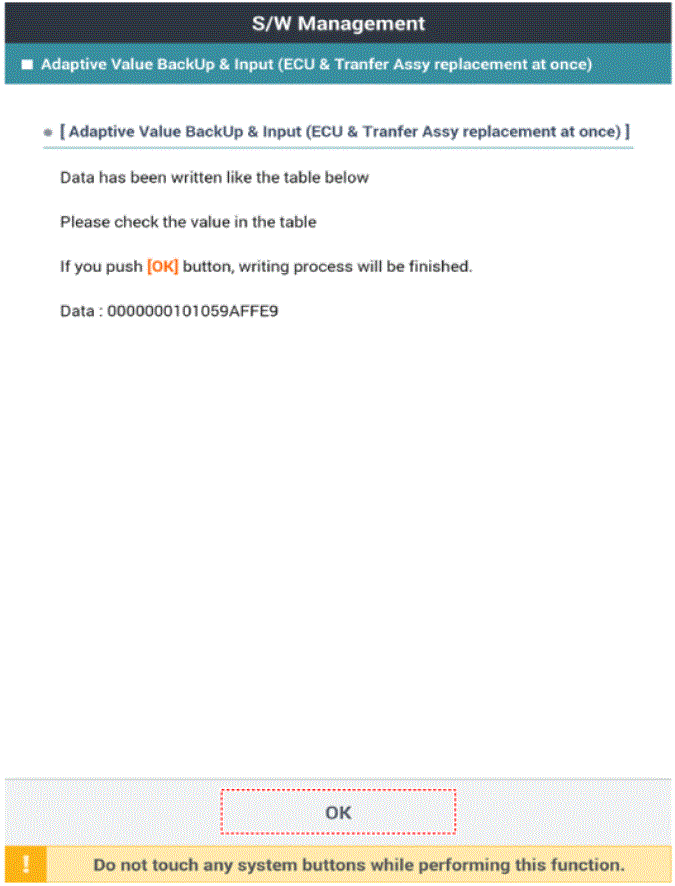

      G16112830Courtesy of HYUNDAI MOTOR AMERICA

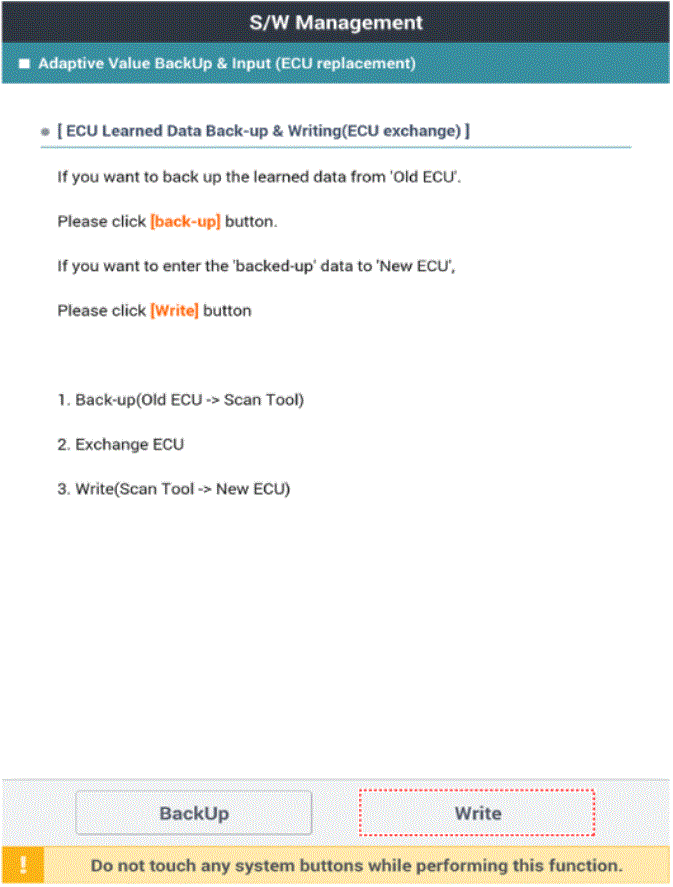

      G16112831Courtesy of HYUNDAI MOTOR AMERICA
      G16112832Courtesy of HYUNDAI MOTOR AMERICA

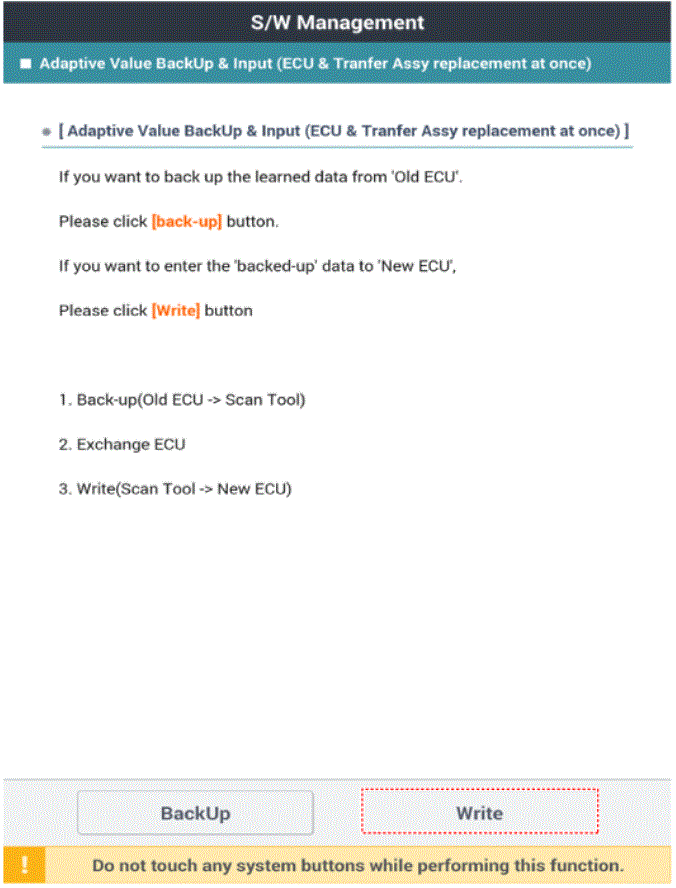

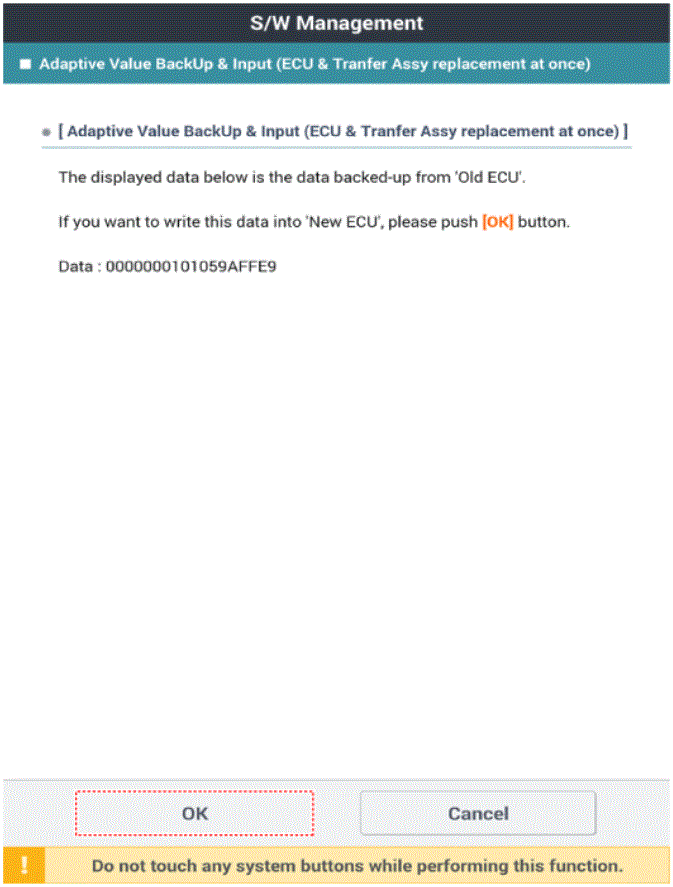

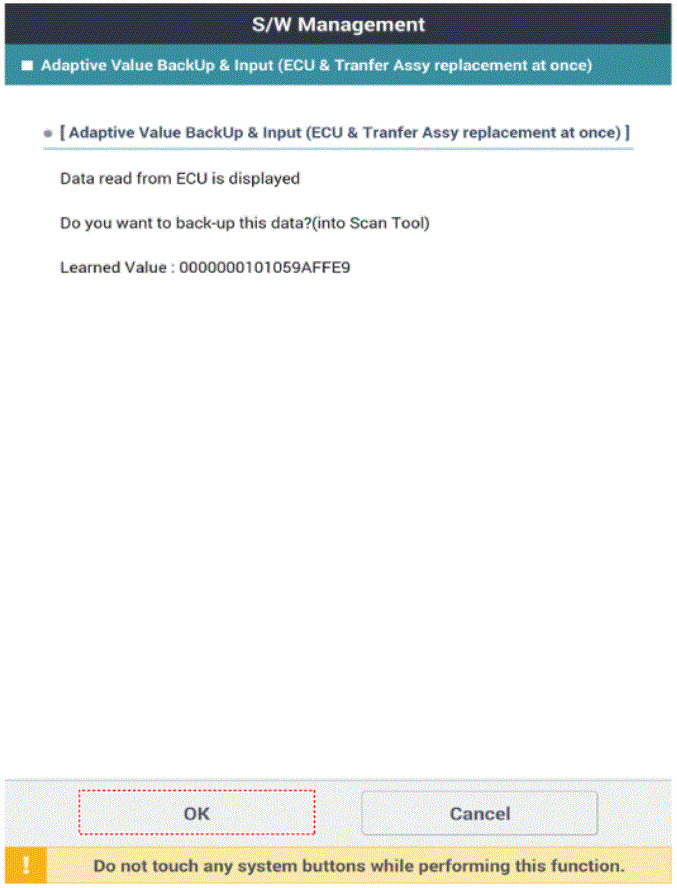

    • After replacement: Enter the original ECU's clutch learning into the replacement ECU.

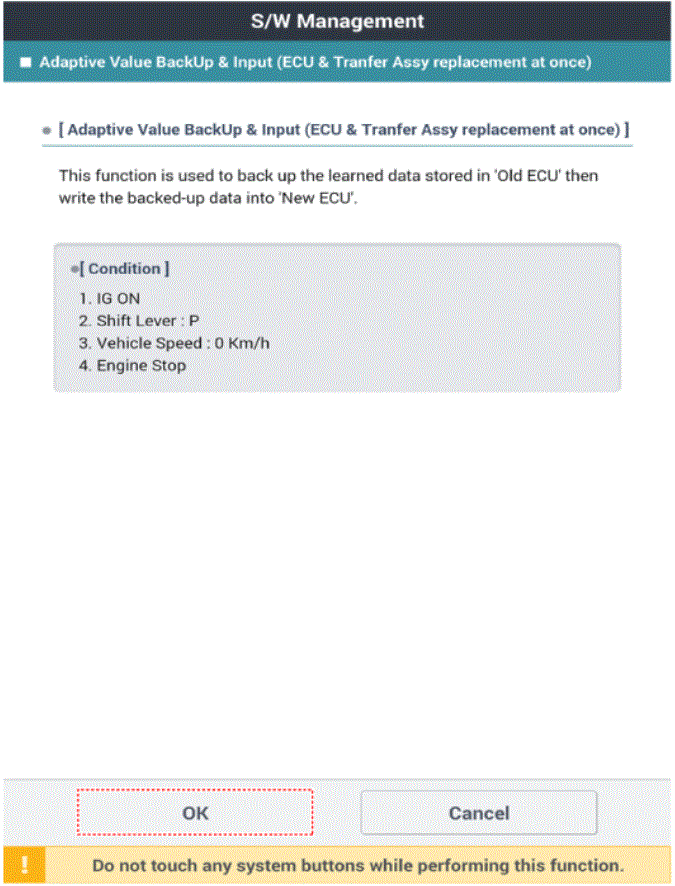

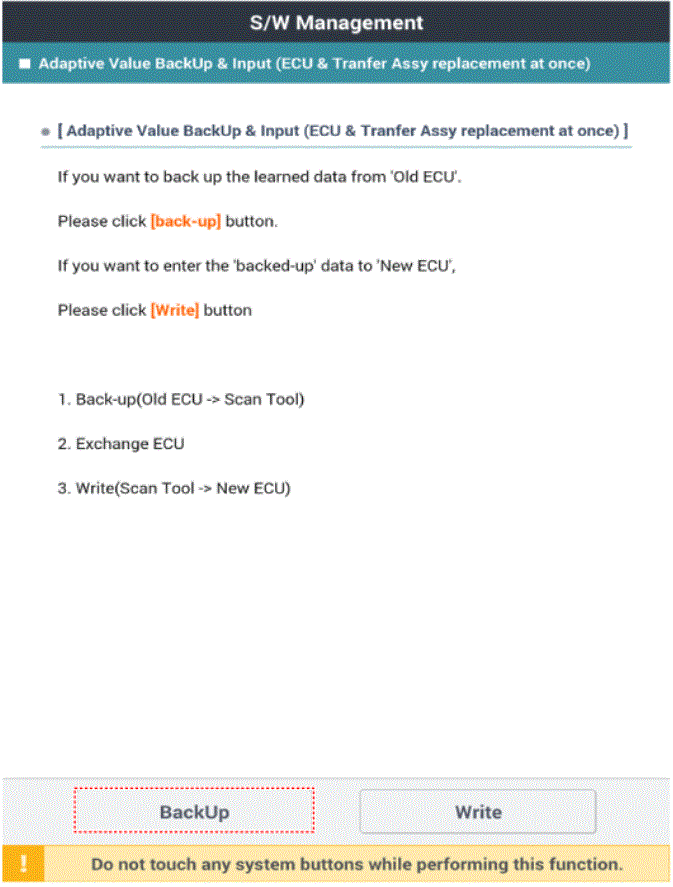

      G16112833Courtesy of HYUNDAI MOTOR AMERICA
      G16112834Courtesy of HYUNDAI MOTOR AMERICA
      G16112835Courtesy of HYUNDAI MOTOR AMERICA
      G16112836Courtesy of HYUNDAI MOTOR AMERICA
      G16112837Courtesy of HYUNDAI MOTOR AMERICA
      G16112838Courtesy of HYUNDAI MOTOR AMERICA

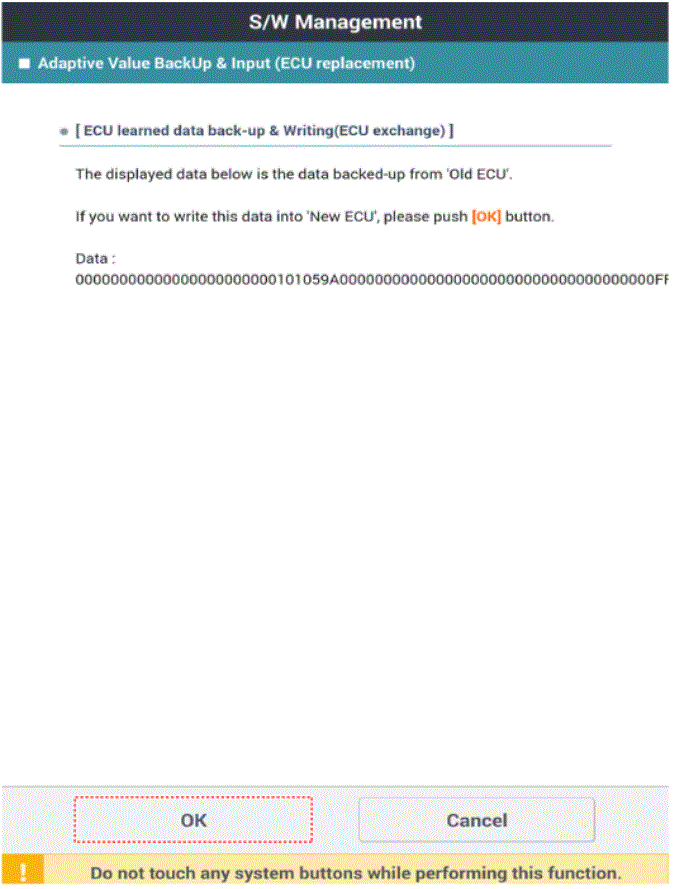

      G16112839Courtesy of HYUNDAI MOTOR AMERICA

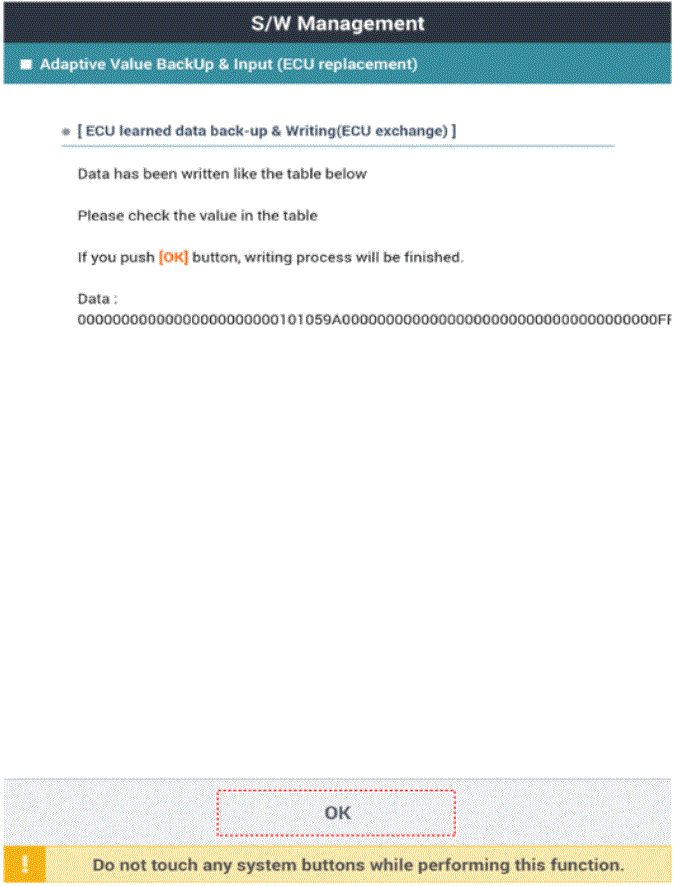

      G16112840Courtesy of HYUNDAI MOTOR AMERICA
    • Perform the following procedure in case of the appearance of failure code (P182900, P183600).

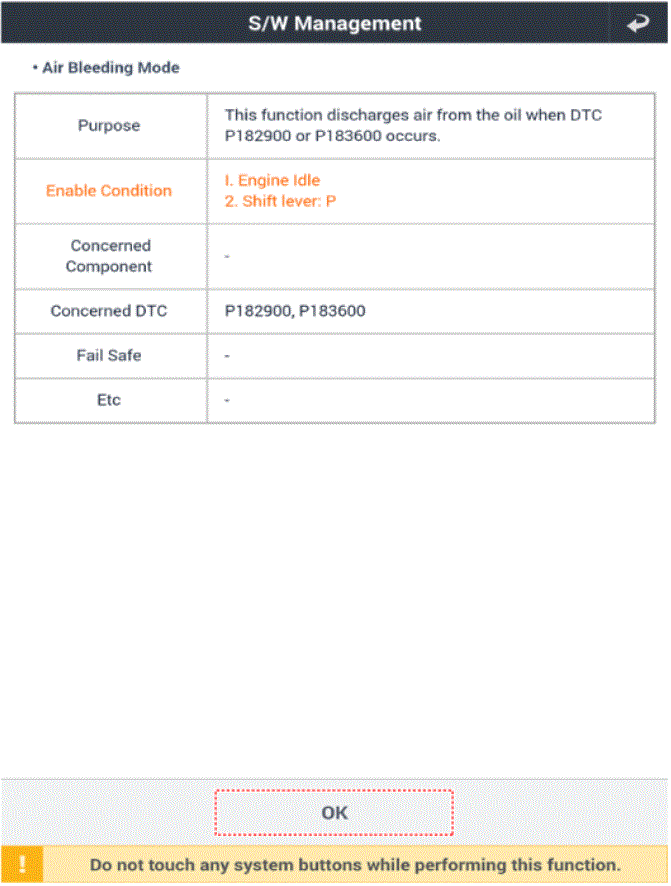

      G16112841Courtesy of HYUNDAI MOTOR AMERICA
      G16112842Courtesy of HYUNDAI MOTOR AMERICA

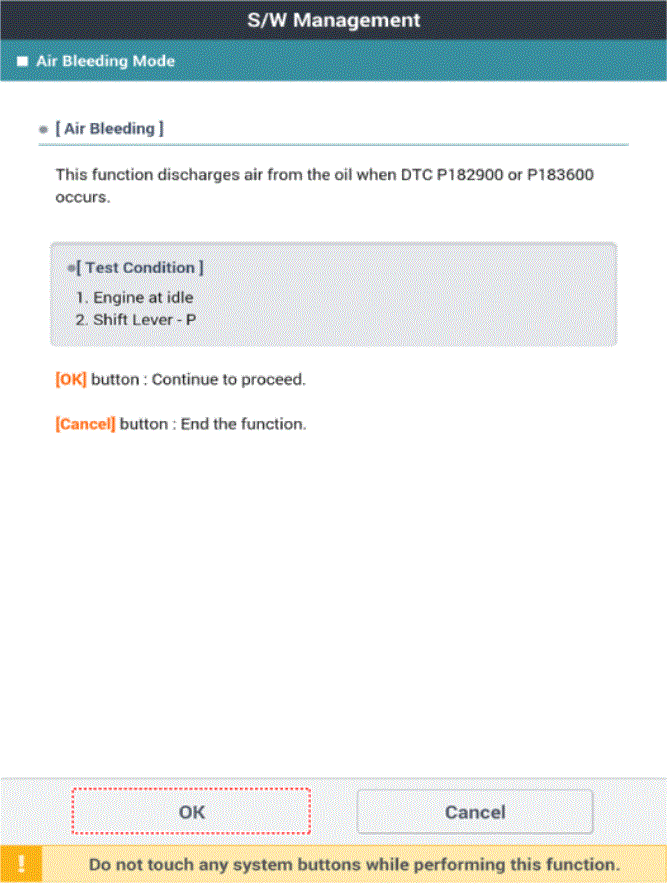

      G16112843Courtesy of HYUNDAI MOTOR AMERICA
