E-CVVT Cover

  1. Remove the engine mounting bracket.

    (Refer to Engine Mechanical System - "ENGINE MOUNTING ")

  2. Remove the engine support bracket (A) after loosening the mounting bolt.
    IMPORTANT:
    • Loosen the bolts in the sequence shown (6→5→4→3→2→1).

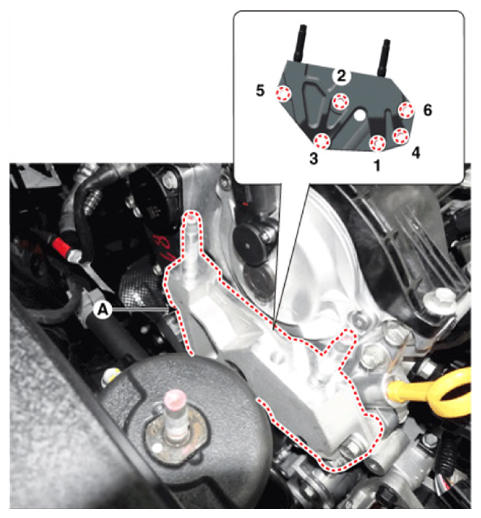

    Fig 1: Engine Support Bracket Bolts Loosening Sequence
    G14534302Courtesy of HYUNDAI MOTOR AMERICA

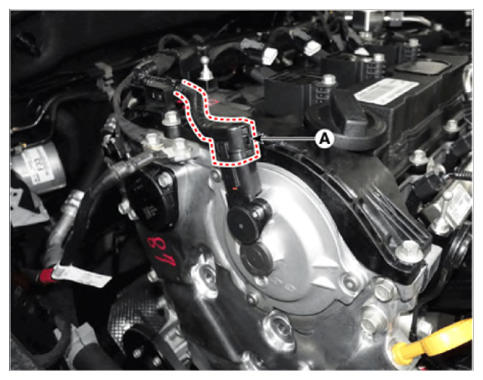

  3. Remove the E-CVVT cover connector (A).
    G14534303Courtesy of HYUNDAI MOTOR AMERICA

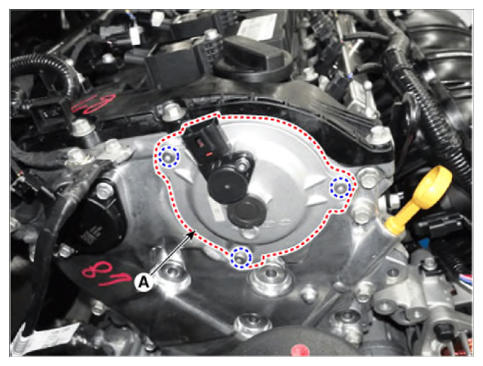

  4. Remove the E-CVVT cover (A) after loosening the mounting bolt.
    G14534304Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Take care avoid external force to the brush after removing the cover.
