Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:

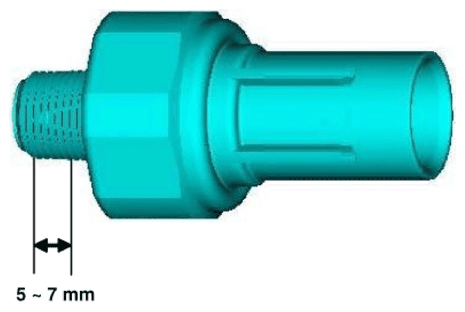

- Apply the sealant to the sensor.
Specification: TB2403

Tickness: 0.2 - 0.4 mm (0.0079 - 0.0157 in.)

Courtesy of HYUNDAI MOTOR AMERICA
