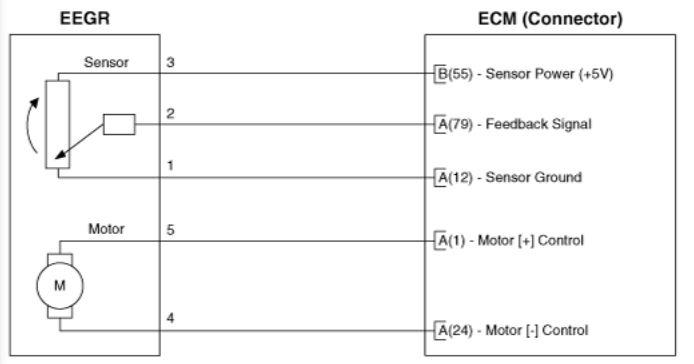

Home › Hyundai › 2021 › Sonata Hybrid Blue › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Electric EGR Control Valve › Schematic Diagrams › Circuit Diagram › Notes
