Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the positive (+) battery cable.
- Remove the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

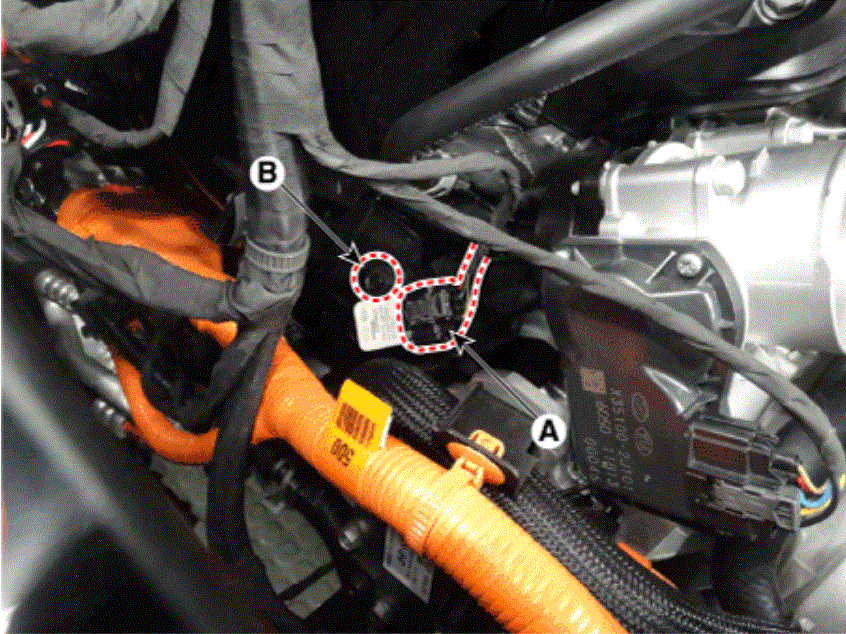

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the mounting bolt (B), and then remove the sensor from the surge tank.
Manifold absolute pressure sensor mounting bolt:
6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb.ft)
