Engine Coolant Temperature Sensor (ECTS) #2
- Turn ignition switch OFF and disconnect the positive (+) battery cable.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

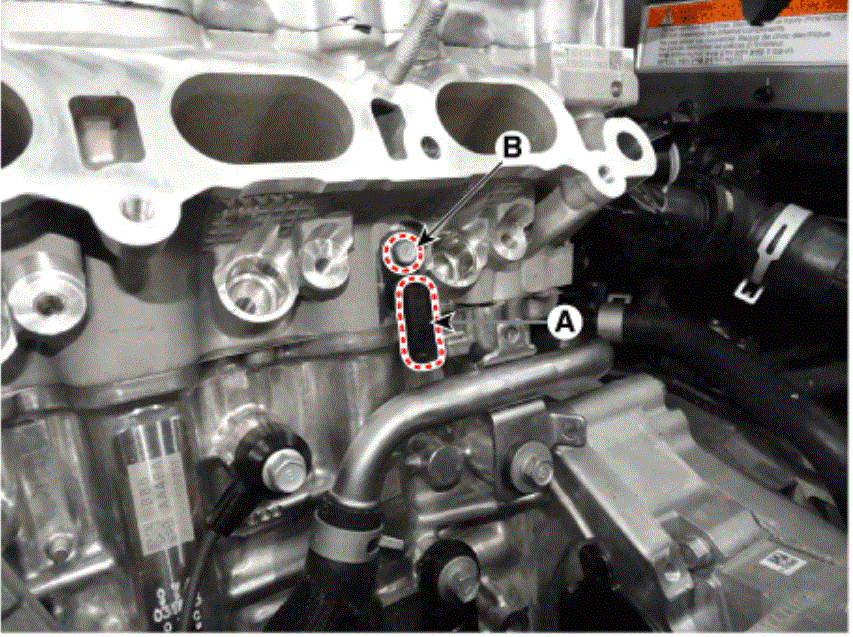

- Remove the engine coolant temperature sensor after loosening mounting bolt (B).
Engine Coolant Temperature Sensor #2 mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
