Repair Procedures: Removal

Information

• Accelerator Position Sensor (APS) cannot be replaced on its own, it should be replaced with accelerator pedal assembly.

1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

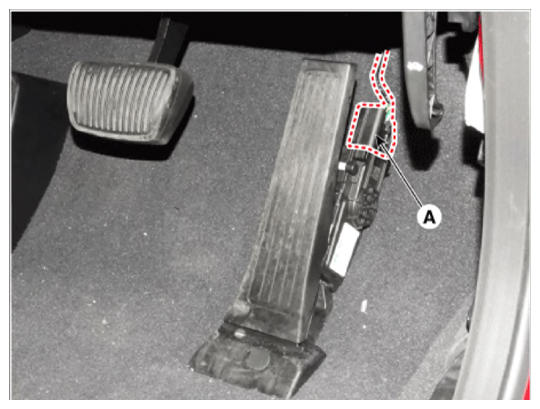

2. Disconnect the accelerator position sensor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

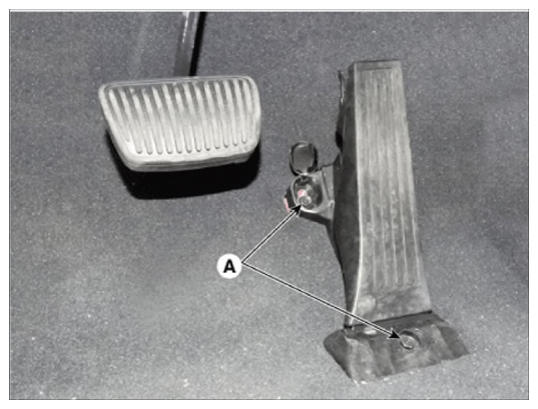

3. Remove the mounting cap (A).

   Courtesy of HYUNDAI MOTOR AMERICA

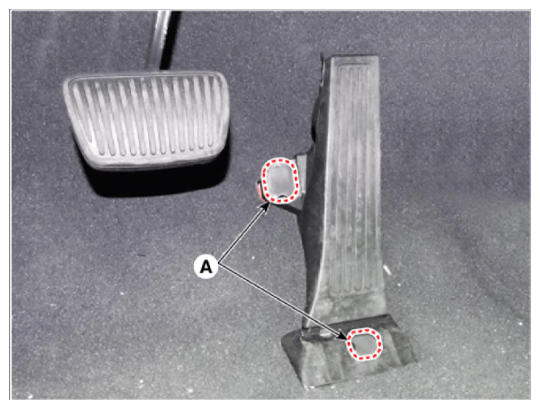

4. Remove the accelerator pedal assembly after loosening the mounting bolt & nut (A).

   Tightening Torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

   Courtesy of HYUNDAI MOTOR AMERICA
