Home › Hyundai › 2021 › Sonata Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L (Except HEV) › Thermal Management Module (TMM) Motor › Components & Components Location › Components

Components & Components Location: Components

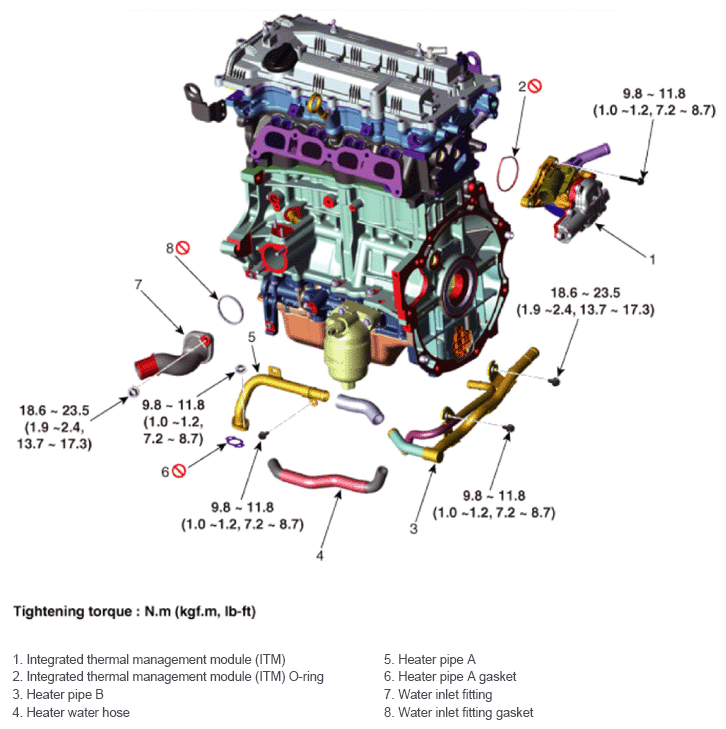

Fig 1: Thermal Management Module Motor Components Location With Torque Specification
G14625804Courtesy of HYUNDAI MOTOR AMERICA
