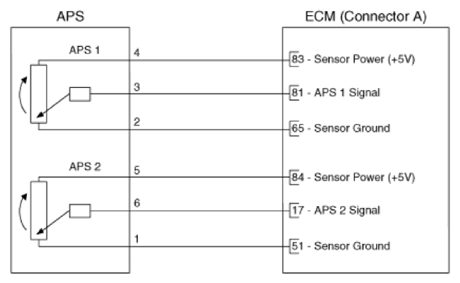

Home › Hyundai › 2021 › Sonata N Line › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5T (Except HEV) › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram › Notes
