Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

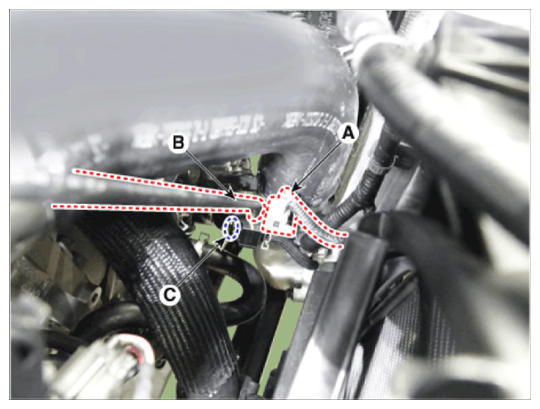

- Disconnect the RCV control solenoid valve connector (A), RCV hoses (B), and then loosening the installing bolt (C).

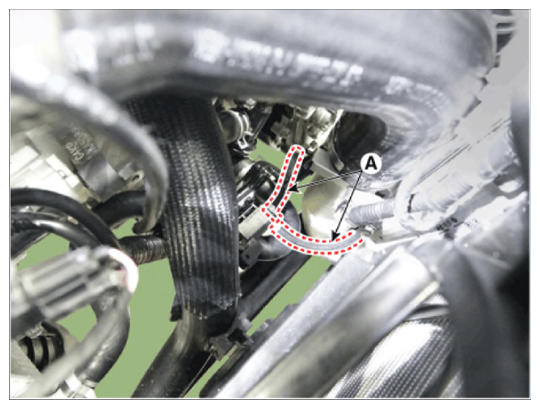

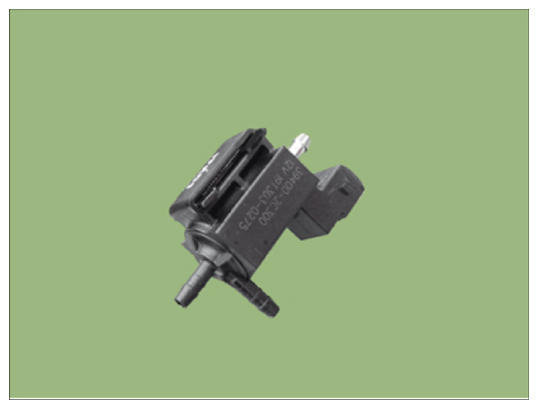

- Disconnect the RCV hose (A), and remove the RCV control solenoid valve.
