Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.
- Remove the engine cover. (Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the ignition coil. (Refer to Engine Electrical System - "IGNITION COIL ")

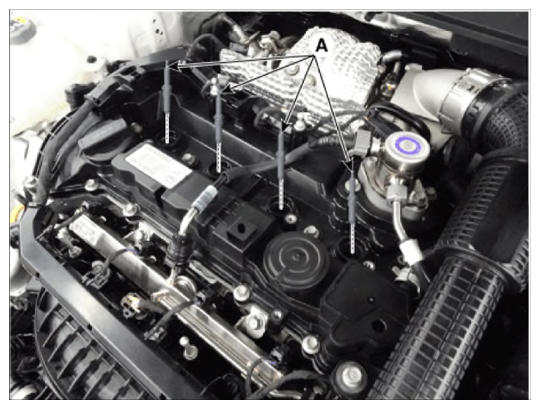

- Using a spark plug wrench, remove the spark plugs (A).
Tightening torque:
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.0 lb-ft)
