Repair Procedures: Disassembly

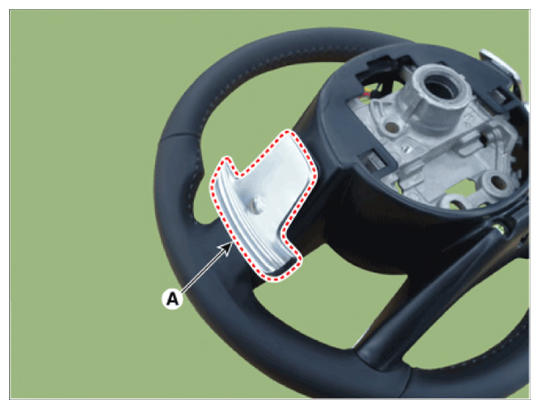

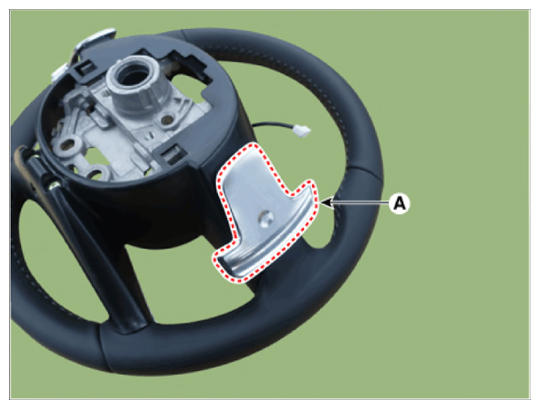

1. Remove the paddle shift switch (A) after loosening the screw.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

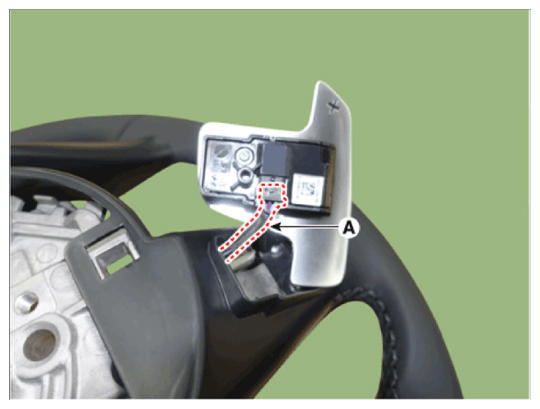

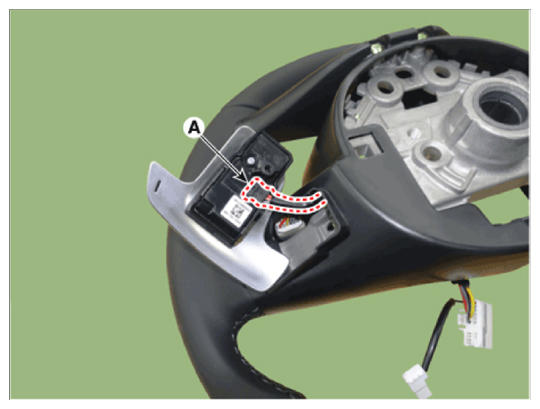

2. Disconnect the paddle shift switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

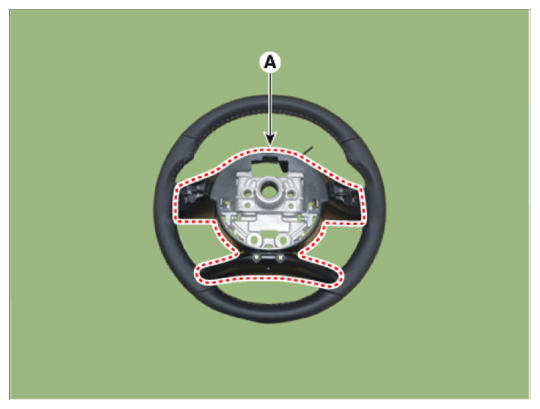

3. Remove the lower cover (A) after loosening the screw.

   Courtesy of HYUNDAI MOTOR AMERICA

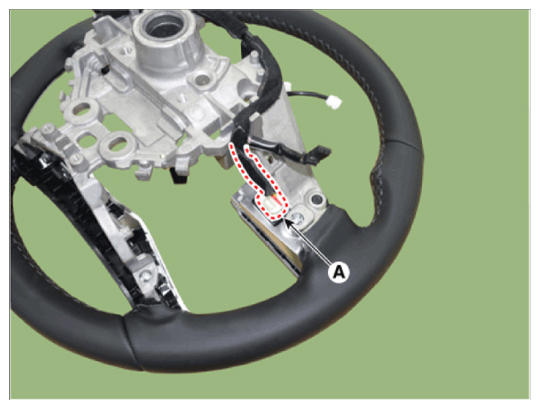

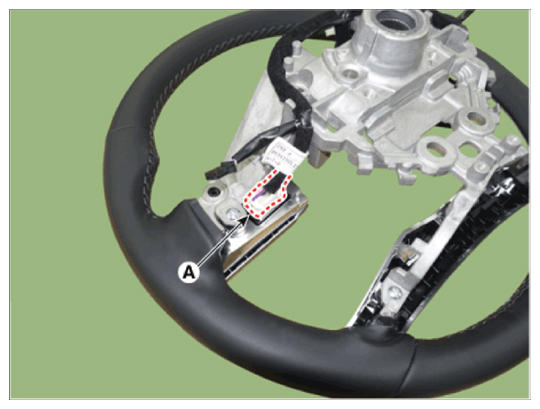

4. Disconnect the remote control switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

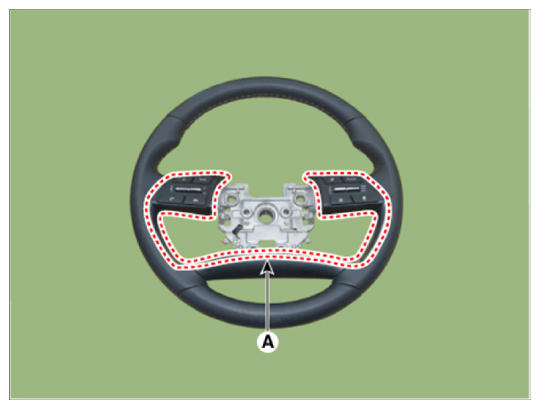

5. Remove the bezel (A) after loosening the screw.

   Courtesy of HYUNDAI MOTOR AMERICA

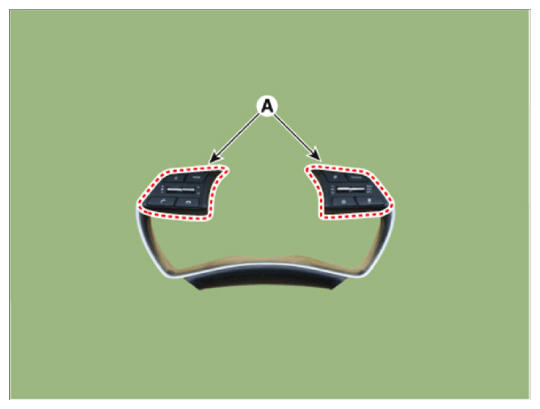

6. Remove the remote control switch (A) after loosening the screw.

Courtesy of HYUNDAI MOTOR AMERICA
