Repair Procedures: Installation

  1. Install in the reverse order of removal.
NOTE:

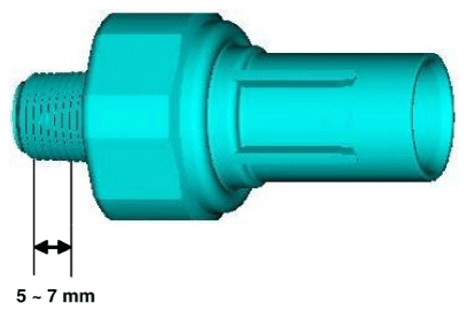

  • Apply the sealant to the sensor.

Specification:  TB2403

Tickness:  0.2 - 0.4 mm (0.0079 - 0.0157 in.)

G14629327Courtesy of HYUNDAI MOTOR AMERICA
