Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Lift the vehicle.
- Remove the rear left wheel & tire and wheel house cover.

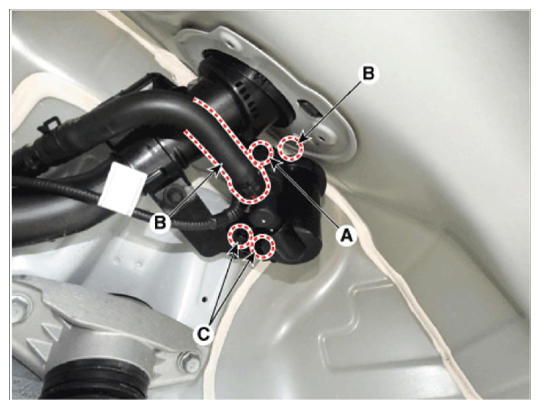

- Disconnect the CCV connector (A).
- Disconnect the vent hose (B) which connected to fuel tank air filter and CCV.
- Remove the fuel tank air filter after loosening mounting bolt (C).

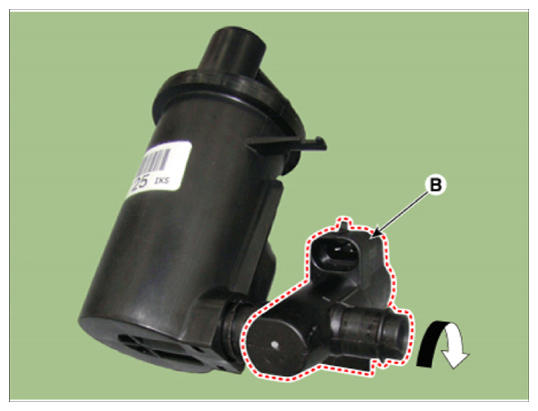

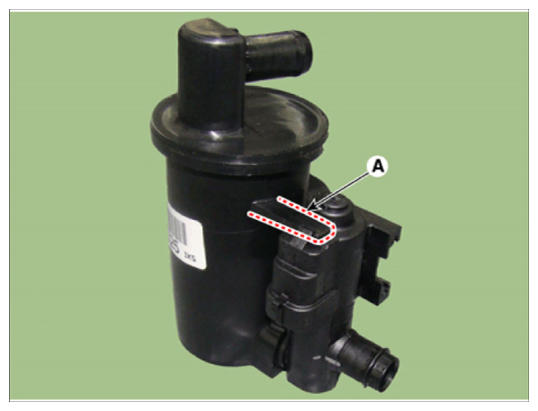

- Lifting the fixed part (A) and then rotating CCV (B) 30 degrees in the direction of the arrow.
- Remove the CCV from the fuel tank air filter.
