Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

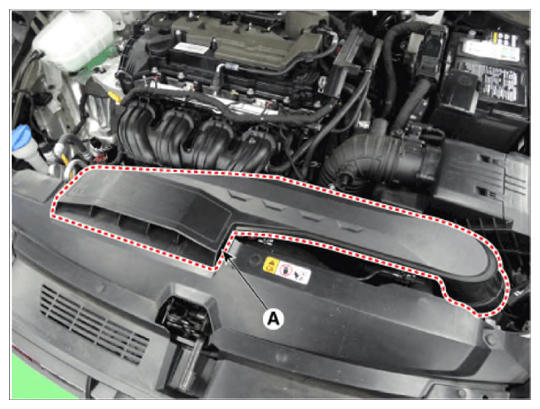

  2. Remove the air duct (A).
    G14629167Courtesy of HYUNDAI MOTOR AMERICA

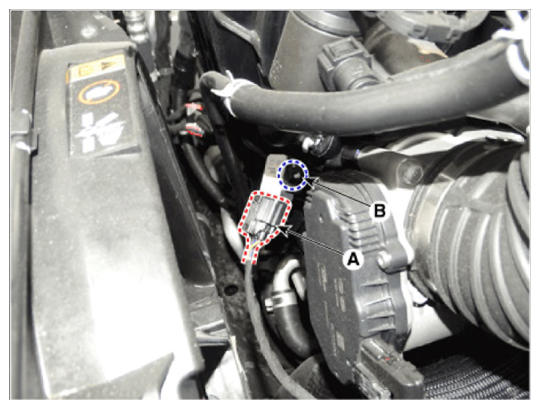

  3. Disconnect the sensor connector (A) and then loosening the mounting bolt (B).

    Tightening Torque:

    8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-ft)

G14629168Courtesy of HYUNDAI MOTOR AMERICA
