Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
  3. Remove the electric shift button.

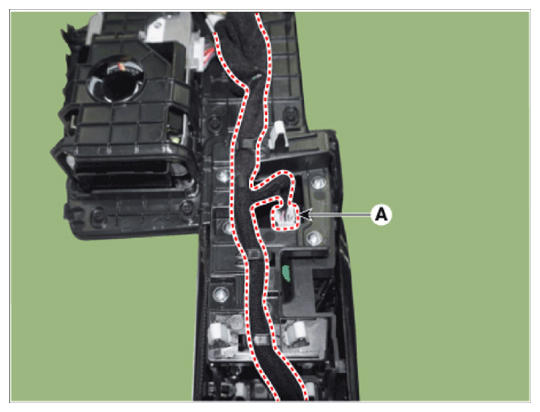

    1. Disconnect the connector (A) and then separate the wire.
      G14630135Courtesy of HYUNDAI MOTOR AMERICA

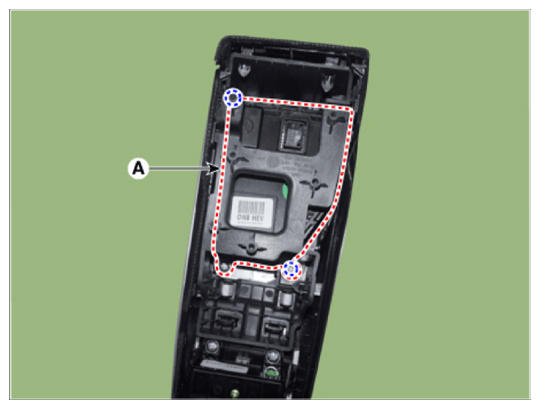

    2. Loosen the screw and then removing the shift button assembly (A).
      G14630136Courtesy of HYUNDAI MOTOR AMERICA

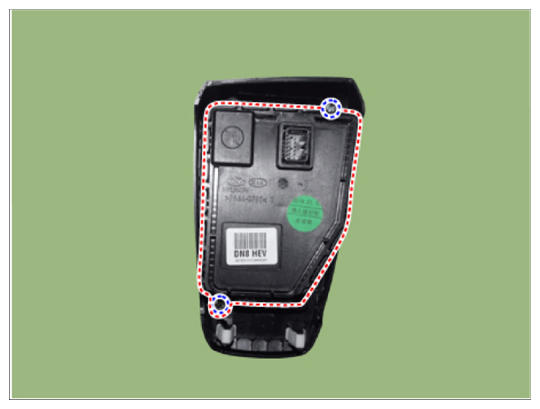

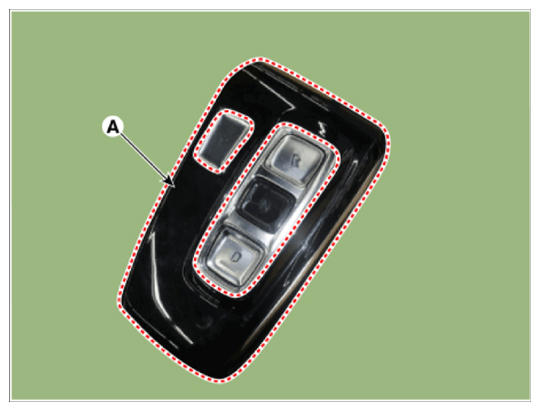

    3. Loosen the screw (B) and then removing the console upper cover (A).
      G14630137Courtesy of HYUNDAI MOTOR AMERICA
      G14630138Courtesy of HYUNDAI MOTOR AMERICA

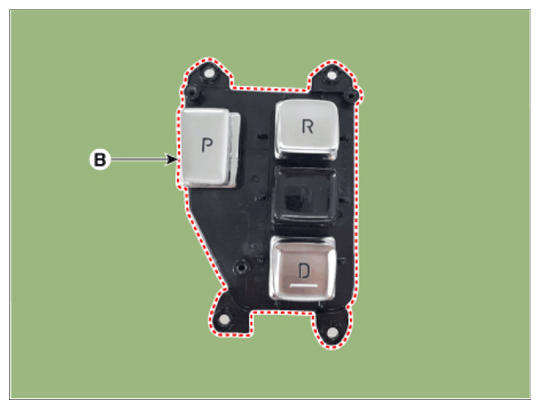

    4. Loosen the screw and then removing the upper cover (A) from shift button (B).
    G14630139Courtesy of HYUNDAI MOTOR AMERICA
    G14630140Courtesy of HYUNDAI MOTOR AMERICA
