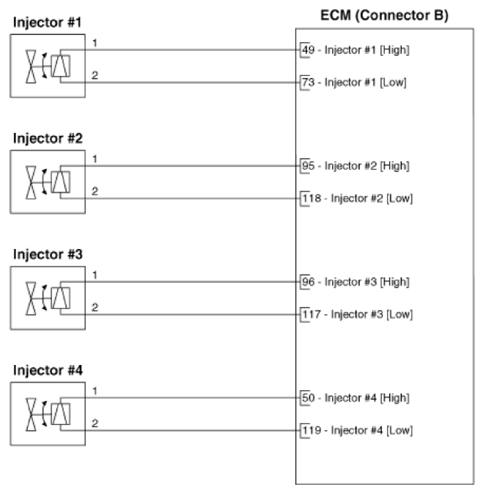

Home › Hyundai › 2021 › Sonata SEL › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L (Except HEV) › Injector › Schematic Diagrams › Circuit Diagram › GDI Injector
