Automatic Transaxle System - 2.4L
›
Automatic Transaxle
›
Components And Components Location
›
Components Location
Components Location

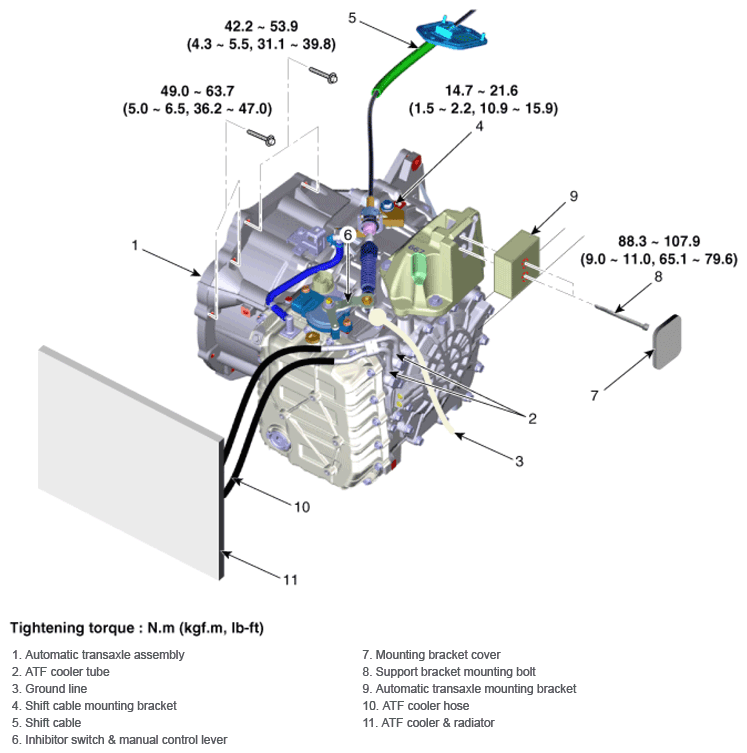

Fig 1: Automatic Transaxle Components Location With Torque Specification (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

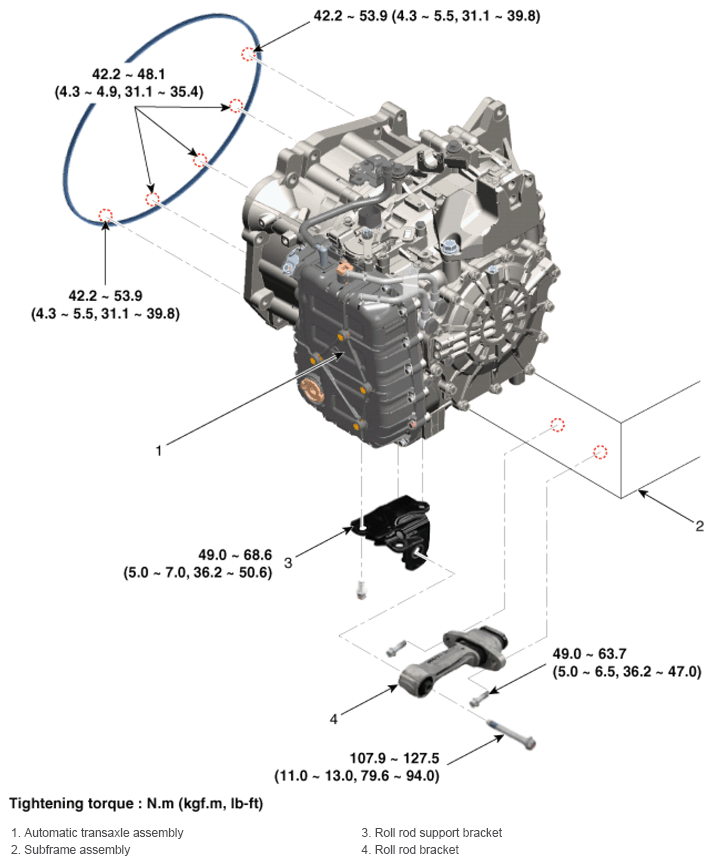

Fig 2: Automatic Transaxle Components Location With Torque Specification (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
