Home › Hyundai › 2021 › Tucson SE, FWD › Repair and Diagnosis › Electrical › Charging Systems › Wireless Power Charger System › Wireless Charging Lamp › Components And Positions › Components

Components And Positions: Components

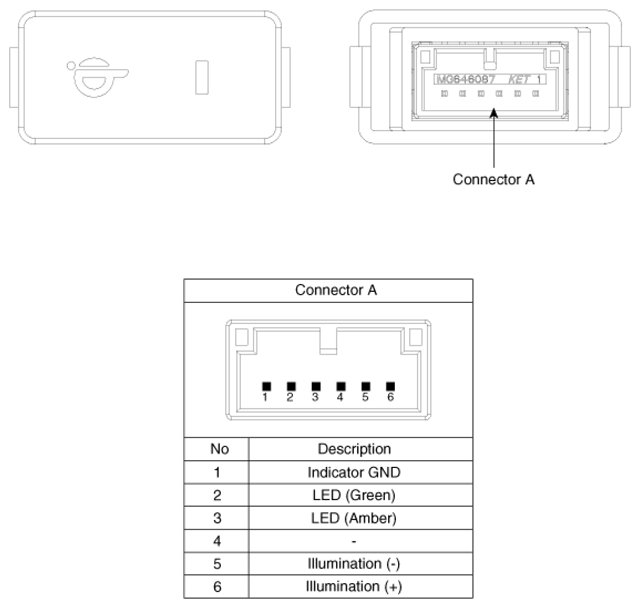

Fig 1: Wireless Charging Lamp Connector End View And Terminal Description
G13033524Courtesy of HYUNDAI MOTOR AMERICA
