Home › Hyundai › 2021 › Tucson SE, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle System - 2.0L › Automatic Transaxle › Components And Components Location › Components Location (2)

Components Location (2)

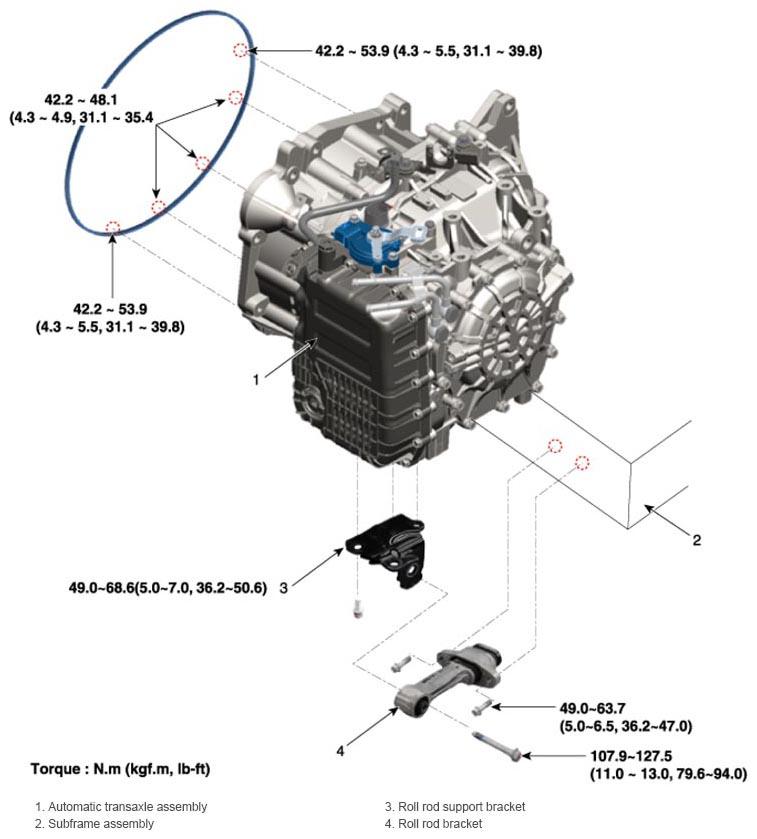

Fig 1: Automatic Transaxle Components With Torque Specification (2 Of 2)
G13021122Courtesy of HYUNDAI MOTOR AMERICA
