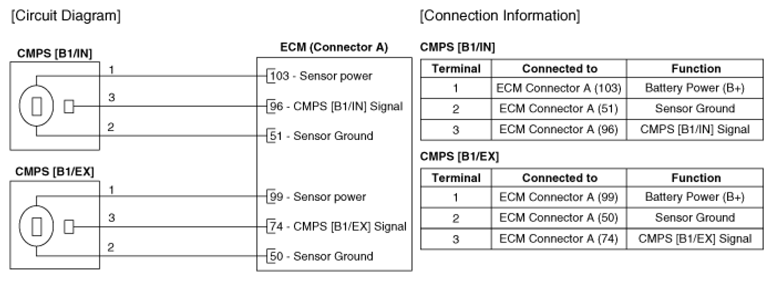

Home › Hyundai › 2021 › Tucson SEL, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
