Home › Hyundai › 2021 › Tucson Ultimate, FWD › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 2.4L › Alternator › Components And Components Location › Components

Components And Components Location: Components

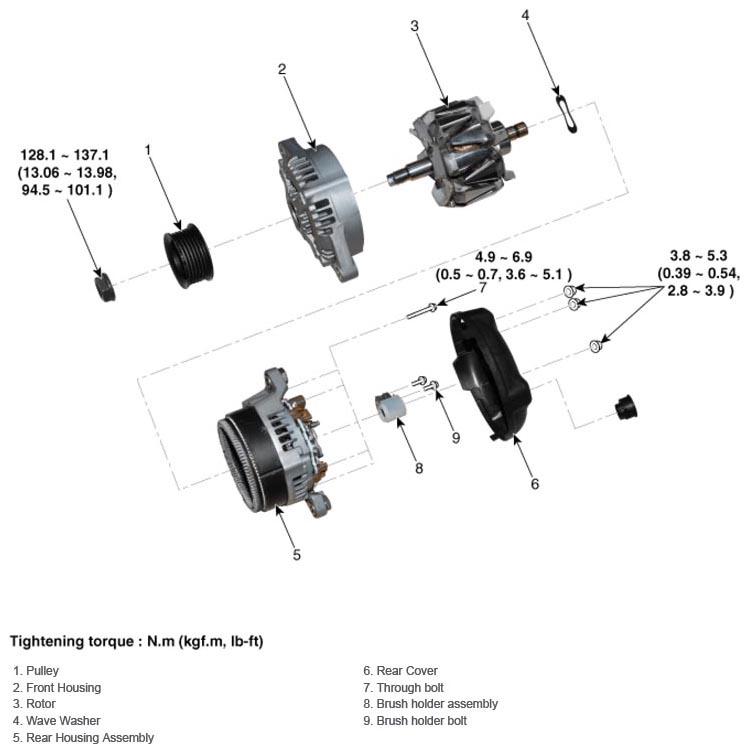

Fig 1: Alternator Exploded View With Torque Specification
G13034096Courtesy of HYUNDAI MOTOR AMERICA
