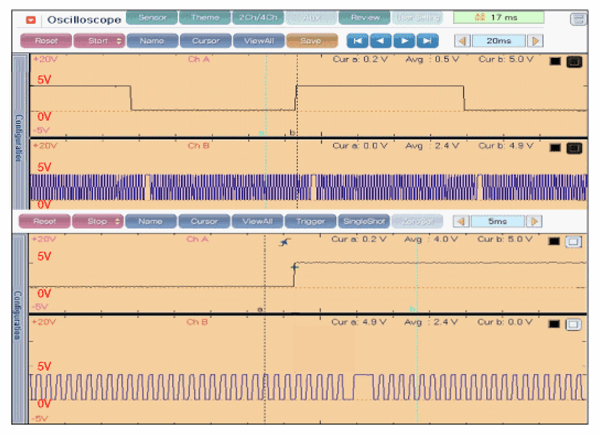

Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

G13035017Courtesy of HYUNDAI MOTOR AMERICA
