Repair Procedures: Inspection

Turn the ignition switch OFF.

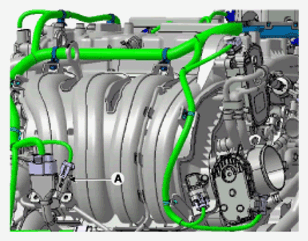

Disconnect the knock sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Measure resistance between the injector terminals 1 and 2.
Check that the resistance is within the specification.
Specification: About 4.87 MΩ [20°C (68°F)]
