Home › Hyundai › 2021 › Tucson Ultimate, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Variable Intake Solenoid (VIS) Valve › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

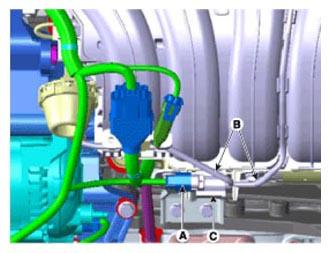

  2. Disconnect the variable intake solenoid valve connector (A) and vacuum hoses (B).
  3. Remove the variable intake solenoid valve after loosening the mounting bolt from the surge tank.
    G13035093Courtesy of HYUNDAI MOTOR AMERICA
