Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

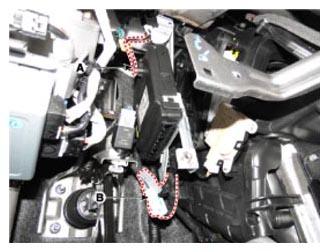

- Disconnect the antenna cable (A) and SMK unit connectors (B).

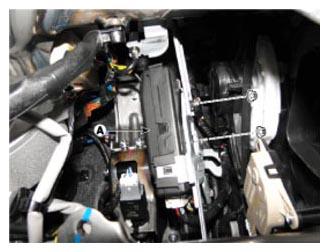

- Remove SMK unit (A) after loosening the mounting nuts.
